Carbon Alloy Stainless Steel Asme B16.5 STD Wn Flange Din Ansi Jis Gost
Asme B16.5 STD Wn Flange Carbon Alloy Stainless Steel Din Ansi Jis Gost

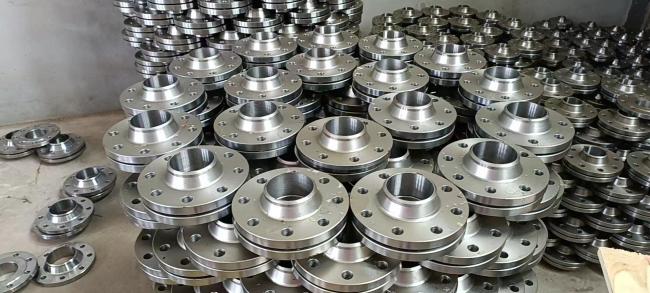

ASME B16.5 Carbon Alloy Stainless Steel Welding Weld Neck Flange DIN ANSI JIS GOST
Butt welding flange is a kind of pipe fitting, which refers to a flange with a neck and a round pipe transition and connected to the pipe by butt welding. The butt welding flange is not easy to deform, has good sealing, is widely used, has corresponding rigidity and elasticity requirements and reasonable butt welding thinning transition, and the distance between the welding joint and the joint surface is large. The butt welding flange is not easily deformed, has good sealing, and is widely used. There are corresponding rigidity and elasticity requirements and a reasonable butt welding thinning transition. The distance between the welding joint and the joint surface is large, and the joint surface is protected from welding temperature deformation. It is generally used for the connection of pipelines and valves with a PN greater than 2.5MPa, or pipelines with high temperature, high pressure and low temperature; it is also used for pipelines that transport expensive, flammable and explosive media.
| Brand Name | AUTHENTIC | |
| Product Name | Weld Neck Flange | |
| Certification | /BV/ABS/LR/TUV/DNV/BIS/API/PED | |
| Place of Origin | Cangzhou China (Mainland) | |
|
Material |
ASTM |
Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6. |
|
Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10, 00Cr17Ni14Mo2, ect.) |
||
| Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5, A420WPL6,A420WPL3 |
||
|
DIN |
Carbon steel:St37.0,St35.8,St45.8 | |
| Stainless steel:1.4301,1.4306,1.4401,1.4571 | ||
| Alloy steel:1.7335,1.7380,1.0488(1.0566) | ||
|
JIS |
Carbon steel:PG370,PT410 | |
| Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321 | ||
| Alloy steel:PA22,PA23,PA24,PA25,PL380 | ||
| Standard Specification | ASTM,JIS,BS,DIN,UNI etc. | |
| Connection | Welding | |
| Shape | Equal | |
| Technics | Forged | |
| Qualification | ISO9001, API,CE | |
| Equipment | Pushing Machine,Beveling Machine,Sand Blasting Machine | |
| Thickness | Sch10-Sch160 XXS | |
| Size | Seamless 1/2" To 24" Welded 24" To 72" | |
| Surface of Finish | Antirust Oil,Hot Galvanized | |
| Pressure | Sch5--Sch160,XXS | |
| Standard | ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2 | |
| The third party inspection | BV, , LOIYD, TUV, and other party alloyed by clients. | |
| Remark | Also can supply IBR fittings and Specialized NACE & HIC Fittings | |
| Marking | Registered logo,Heat Number,Steel Grade,Standard,Size | |
| Supply Ability | 3,0000pcs per month | |
| Packing | PLY-wooden case or pallet or as for clients' requirements | |
| Application | Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, | |
|
Advantages |
1. 20 + years of production experience at your service. 2. The fastest delivery 3. The lowest price 4. Most comprehensive standards and materials for your choice. 5. 100% export. 6. Our products EXPORT to Africa, Oceania, mid east, eastern Asia, Western Europe etc. |
|
| Special design available as the requirement of customer |
||
About us:
Cangzhou Authentic Pipe-Fitting Manufacture Co.,ltd..Possesses a site of 150000 square meters, with the building of 50000 square meters, and permanent asset 78 million. The number of staff reached 134. Among them, are 26 technicians, The corporation has employed 15 pipe-fittings manufacturing and flanges-making production lines.the technipue,such as beat, forging,machine-processing. intermediate-frequency pushing, cold-molding, high extruding, and heat treatment, are all available in our mill, in addition, more and more attention is paid to the improvement of inspecting equipment with the sole purpose of ensuring the quality of our products. Advanced Equipment as well as corresponding detecting skills have been adopted constantly, such as Chemical Elements Analyzing, Metal Test, physics inspecting, and Nondestructive Detecting. Besides, we have employed the most advanced Material Composition analyzing equipment Spectrum Direct-reading Equipment(made in England)with its chemical composition of all kinds of metal material that could be tested directly and exactly.
We specialize in the manufacture of a wide variety of industrial pipe fittings including elbows, bends, tees, crosses, reducers, caps, and more. All products adopted the American standard ASME(ANSI), European standard EN, German standard DIN, Japanese standard (JIS), and so on. Our continuing commitment to the production of quality products has made us internationally recognized in the following industries: power generation, petroleum, natural gas, chemical, shipbuilding, heating, paper making, and metallurgy, among others. Backed by our skilled and qualified employees, we can provide an optimal solution to serve your needs.
