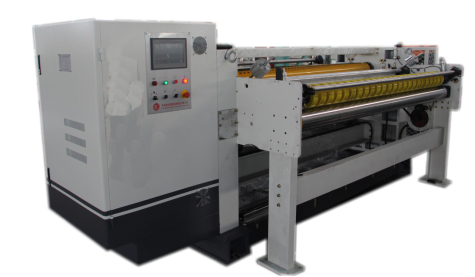

High Speed 2200mm NC Cutter Of Corrugated Cardboard Production Line
High Speed 2200mm NC Cutter Of Corrugated Cardboard Production Line
A,Technical parameters:
| Working width | 2200mm |  |
| Design speed | 200m/min | |
| Economic speed | 130-200m/min | |
| Min. cutting length | 500mm | |
| Max. cutting length | 9999mm | |
| Cutting accuracy | ±1mm, | |
| Working power | 380V 50Hz 53KW |
B,Structural feature:
★It can store 200 units orders,replace the cutter specifications quickly and accurately,changing orders without stop,And enables networked computers to facilitate production management. ★Knife shaft drive gears are precision forged steel induction hardening, backlash-free transmission, advanced keyless connection, high transmission accuracy. ★Cutting machine adopts inlaid front steel blade knife spiral structure, serrated knife. scissors, shears, shear force, long blade life. ★Around feed rollers are used the sun gear platen way, smooth delivery, pressure evenly, easy to crush plate board or cause blockage. ★This type of brake is energy storage type (non-energy brake), so in the process of production, the average power consumption is 1 / 3 of that of the ordinary NC cutting machine, saving more than 70% of electricity and achieving the goal of saving money. ★Exact and adjustable no gap gear to ensure precise blade engagement, running balance. ★Independent oil pump and filter are used to distribute two sets of copper pipes in each gear position to feed oil, lubricate and cool. ★Knife roller: fine quality forged steel material, the balanced, with good stability. |
C,Main dynamic parameters:
Part name Craftsmanship | Specification | Surface treatment | Special treatment |
| Cross cutting the upper and lower knife axis | ￠215mm | Conditioning | Dynamic balance |
| Front lower conveying roller | ￠155mm | Round grinding chrome plating polishing | Dynamic balance |
| Rear lower conveyor roller | ￠155mm | Round grinding chrome plating polishing | Dynamic balance |
| Paper shaft | ￠165mm | Wrapped silicone | Dynamic balance |
| Output sun gear | ￠160mm | Polyurethane | Intensive |
D,Main dynamic parameters:
| Name | Power | Voltage | Frequency |
| Main drive servo motor | 42.9KW | 380V | 50HZ |
| Front feed motor | 2.2KW(Frequency adjustment speed) | 380V | 50HZ |
| Rear feed motor | 2.2KW(Frequency adjustment speed) | 380V | 50HZ |
E,Main parts brand and origin:
| Serial number | Name of main parts | Brands or place of origin | Remarks |
| 01 | Box rack | Self-produced | HT250 |
| 02 | Knife roll | Tiangang Precision Forging | 42CrMo |
| 03 | Full AC servo motor | Shanghai Futian | 42.9KW |
| 04 | Paper frequency conversion motor | HeBei YongShun | |
| 05 | Flying shear servo control system | INVT | |
| 06 | Motion control board | Germany MKS-CT150 | |
| 07 | Rotary encoder | Germany SIKI | |
| 08 | Timing belt | Obi, Germany OPTIBELT | |
| 09 | Tightening sleeve | XianYang ChaoYue | |
| 10 | Bearing with seat | ZheJiang | |
| 11 | Low-voltage electrical appliances | SIEMENS | Contactor, relay, button |
| 12 | Proximity switch | Omron Japan OMRON | |
| 13 | Frequency converter | Detal | |
| 14 | HMI | Kunlun State | |
| 15 | Sun gear | ShenZhen |
Our company
Product packaging
FAQ:
Q1: How is the warranty of the machine?
A: Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, Kindly contact us and we will reply you through product's photos and videos to make every detail clear.
Q2: How about the after-sale service?
A: 1) TM online 24 hours, also contact by email, skype, wechat, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
Q3: Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.
Q4: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it is difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
