LAN 19 Inch 48 Port LC Fiber Patch Panel Wall Mount 1U Type

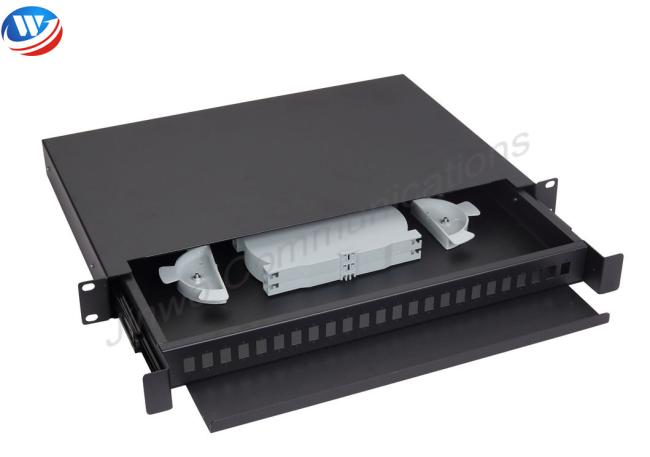

19''inch Rack Mount 1U Fiber Optic Patch Panel For 12 Port 24Core SC Adapter

Rack-Mount Panel provides a simple, high-density, low profile solution for easy access and management of fiber optic terminations
in a 1U-rack space design.

Feature:

Product Application:

1) Telecommunications subscriber loop

2) Fiber to the home (FTTH)

3) LAN/WAN

4) CATV

Technical Information:

Type: Cable installation, wall mount
Size: 40x38x14cm , 30x30x8.5cm, 40.5x38.2x8.5cm

Capacity: 12/24 SC
Connector options: SC, SC/APC, LC, LC/APC, ST, FC

Key Features:

1) Standard size, light weight and reasonable structure

2) Splice tray inside changeable

3) Can be used in 19'', 23'' standard distribution frame

4) Suitable for ribbon and single fiber

5) Various panel plate to fit different adapter interface

6) Front mark on the plate is easy for identification and operation

7) 24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters

8) Easy for management and operation

Electricity Performance:
