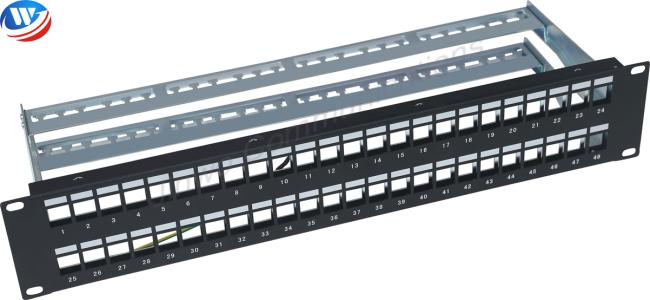

2U Network Patch Panels Cable Management Shielded 48 Port Rack Mount

                                  19 Inch 2U 48Port Shielded STP Rack Mount With Cable Management Patch Panel

1. 19" 2U Cat5e/6/6A 48 port with cable managament STP fiber patch panel
2. Operation temperature:-40°C to 60°C, Relative
humidity:85%(30°C), Air pressure:70-106Kpa
3. Complete metalation and reed construction
4. Suitable for 22AWG/23AWG/24AWG/26AWG solid wires
5. Color: black, RAL 9005
6. Printing:white
7. Labelling fields:1-24

Features:

1. Front Panel: 1.5mm thickmness metal
panel(SPCC), painting on surface
2. Metallic Frame: 1.5mm thickness
3. Housing material: ABS or PC, UL94-V0 or UL94-V2
4. Meet or exceed the current T568A and T568B standard
5. Termination: Dual IDC, 110 IDC, Krone IDC
6. Panel frame: black or Ivory electrostatic powder-coated steel
7. IDC contact material: phosphor brone with tin plating over nickel
8. contact material: phosphor brone with gold plating over nickel
9. Punching duration:≥250 times
10. Inserting duration:≥750 times
11. Dielectric withstand voltage: 1000V AC RMS, 60Hz 1min
12. Insulation Resistance: 500M-ohm
13.High reliability and superior performance
