STB Module Cable Junction Box 10 Pairs Indoor Distribution Box

Name: STB Module Cable Junction Box 10 Pairs Indoor Distribution Box
Brand: Cixi Jinwo Communications Equipment Co., Ltd.

Price Negotiable

Price: negotiable

MOQ: 100

Delivery Time: 8work days

Brand: JINWO

Product Description

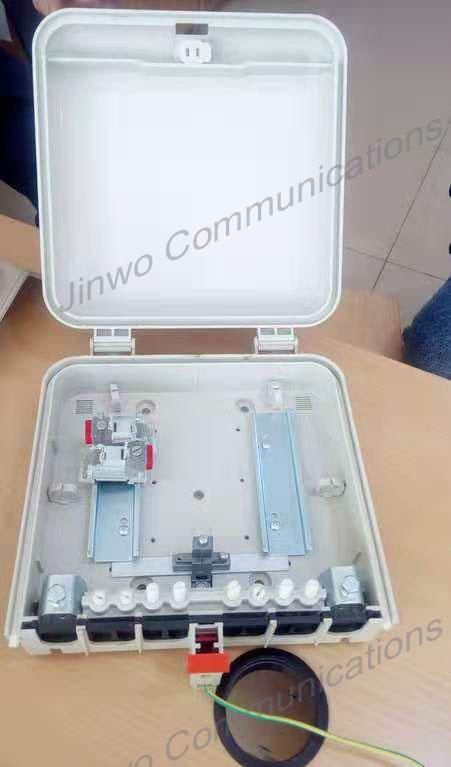

With Grounding Wire Din Rail 10 Paris External Distribution Terminal STB Module Box

Main Features

Made of highly impact resistant ABS

Protection IP 56

Smallest distribution box designed for outdoors

Easy operation and wide range of wire

Technical Parameters

Working temperature: -20℃ ～ 40℃

Storage temperature: -25℃ ～55℃

Relative humidity: ≤85%(+30℃)

Atmospheric pressure: 70kPa ～106kPa

Appearance: the color of all metal and plastic parts is uniform, without any scratch, rust, crusting and cracks.

The labels are clear and complete.

Insulation resistance: under normal ambient conditions, after high temperature test, low temperature test, temperature varing test and humidity heat test, the insulation resistance between any two independent contacts, and/or between contacts and metal parts ≥ 1000MΩ

Contact resistance between contacts: under normal ambient conditions, the contact resistance between contacts ≤7 mΩ. After high temperature test, low temperature test, temperature varing test and humidity heat test, the increasing resistance ≤3 mΩ And after inserting the connection cord (or test cord) into the module for 200 times, the increasing resistance ≤3 mΩ

Contact resistance between conductor and contact: under normal ambient conditions, the contact resistance between contacts ≤3 mΩ. After high temperature test, low temperature test, temperature varing test and humidity heat test, the increasing resistance ≤2 mΩ. And after terminating for 200 times, the increasing resistance ≤2 mΩ.

Dielectric strength: under normal ambient conditions, after high temperature test, low temperature test, temperature varing test and humidity heat test, the insulation resistance between any two independent contacts, and/or between contacts and metal parts is able to withstand an AC voltage of of 1000V (virtual value) at 45Hz~60Hz sinowave for 1 minute, without spark over and flying arc

Gas tight performance: contact touches the conductor at both sides, and thus forming the gas tight area, while the area of gas tight occupies ≥50% of the touched area on each side.

Conductor diameter range: 0.32mm-0.6mm, while insulation ≤ 1.4mm

Pulling strength:≥25N while pulling from the vertical side of the contacts

Flame retardant performance: all plastic parts are flame retardant, reaching grade of UL FV0

Life circle: ≥200 times
