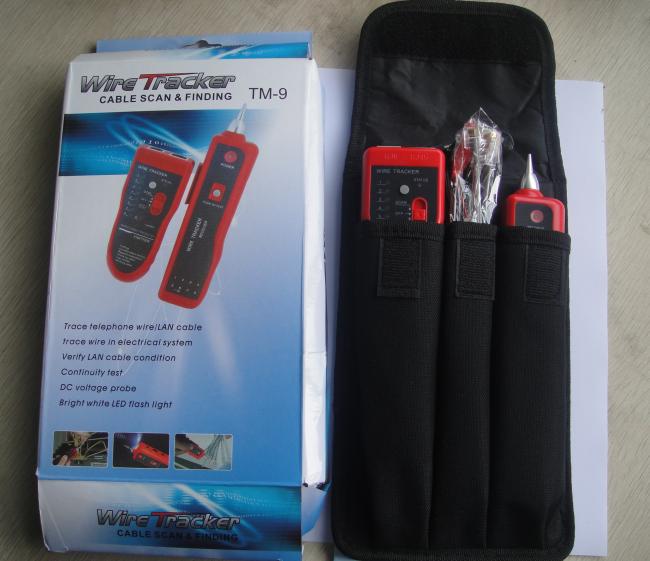

STP RJ11 Rj45 Cable Crimping Tool Blue Network Lan Cable Tester

Features:

100% Brand New

Function of the Telephone Wire Tester:

Directly insert telephone wir with RJ11 plug into the RJ11 socket of the RJ11 RJ45 Wire Tracker's emitter;

Push DIP switch of emitter of position of "SCAN" then wire finding indicator, "STATUS" flashes meaning normal work of emitter;

Press downward the inching button, use the probe of receiver to find target wire at the other end;

During testing, function switchover button can be pressed for switchover of dual-tone.

Function of the Telephone Wire Tester

Directly insert network wir with RJ45 plug into the RJ45 socket of the wire tracker's emitter;

Push DIP switch of emitter of position of "SCAN" then wire finding indicator "STATUS" flashes meaning normal work of emitter;

Press downward the inching button, use the probe of receiver to find target wire at the other end;

During testing, function switchover button can be pressed for switchover of dual-tone.

Function of the earphone: In noisy environment, earphone can be used to prevent interference from the outside.

Volume adjusting function: while find a wire, volume knob can be rotated for moderate level of sound.

Spotlight function: you can easily work as usual while putting on the light switch at night and in the dark.

Energy saving: inching switch can automatically delay power-off; The continuous lifespan of battery is over 50 hours.

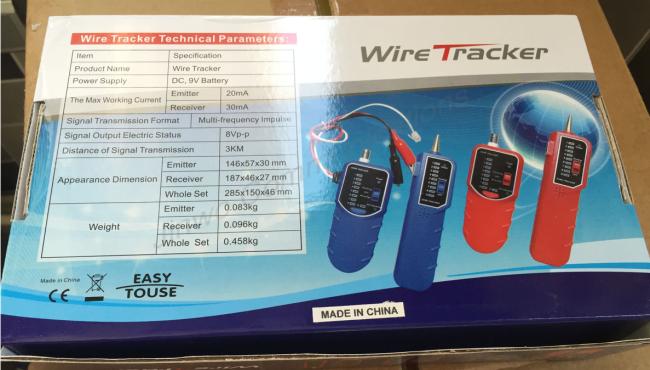

RJ11 RJ45 Tester powered by DC 9V battery (receiver needs one, emitter needs one).

The max working current: emitter: <=10mA; Receiver: <=30mA

Signal output electric status: 8Vp-p

Signal transmission format: multi-frequency impulse.

Distance of signal transmission: >=3km

Size: ~15 x 3.7 x 2cm (receiver); 12.2 x 4.5 x 2.3cm (emitter)

Weight: 419g
