Spheroidal HVOF Thermal Spray Powders 86WC-10Co-4Cr
Spheroidal HVOF 86WC-10Co-4Cr Thermal Spray Powders
Chemicals Compositon:
| Grade | T.C | Co | Cr | Fe | Process |
| BD10301 | 5.0-5.5 | 9.1-10.5 | 3.0-4.5 | <0.1 | Agglomerated & Sintered |
| Particle Size Micron | Apparent Density g/cm3 | Hall Flow S/50g | Appearance |

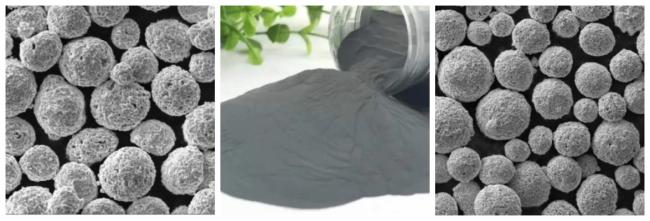

| 45-15 | 4.5-5.6 | <15.0 | Spherical |
| 45-11 | |||
| 38-10 | |||
| 30-10 | |||
| 45-15 |
Typical Properties :
WC-10Co-4Cr, 5-30um Thermal spray powder, is most commonly used by High Velocity Oxygen Fuel (HVOF) spray
and is one of the most popular HVOF powder.
This powder is a tungsten carbide based, made from medium WC, It is able to form a Thermal spray coating with excellent abrasion resistance and corrosion resistance.
The manufacturing process is Agglomerated and Sintered which leads to a more intensive coating and high bonding strength of at least 70Mpa.
Its maximum operating temperature is 500 °C (930 °F).
This kind of thermal spray material is mainly applied on valve parts, petroleum pipeline repair, steel rolls, corrugator rolls and could help to extend the service life of workpieces.
This HVOF tungsten carbide powder always maintains great performance in high pressure and salty environment.
Our products range of WC-Co series:
| Product | Particle Size | Equal to | Main Performance | Spray Process | Applicaitons |
| WC-10Co-4Cr | 45-15um | Woka 3651 3652 3653 3654 3655 3665 |
Corrosive wear resistance | HVOF,HVAF,Atmospheric Plasma | Landing gears |
| 45-11um | Paper manufactureing rolls,Corrugating rollers | ||||
| 38-10um | Ball,gate and dump valves | ||||
| 25-5um | Hydroturbine buckets | ||||
| WC-12Co | 53-20um | Woka 3101, Woka 3102, Woka 3103, Woka 3105, |
Wear resistance | HVOF,HVAF,Atmospheric Plasma | Steel rolls |
| 45-15um | Corrugating rollers | ||||
| 38-10um | Sucker rod couplings | ||||
| 25-5um | Conveyor screws | ||||
| WC-17Co | 53-20um | Woka 3201 3202 3203 3205 3208 |
Ductile Wear resistance | HVOF,HVAF,Atmospheric Plasma | Landing gears |
| 45-15um | Pump seals | ||||
| 38-10um | Exhaust fans | ||||
| 25-5um | Crushing rollers |

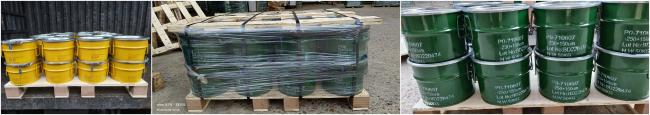

Packing:
