Product Description:

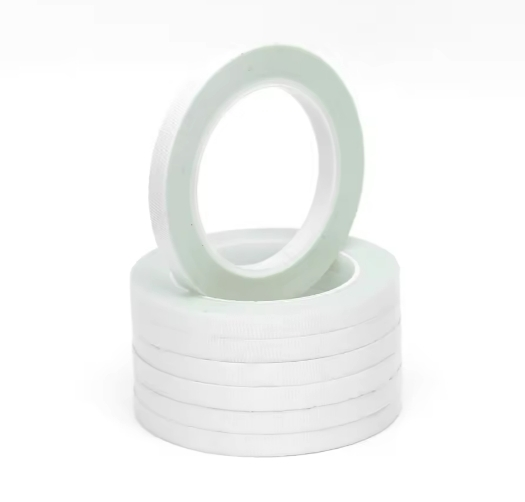

The High-performance Adhesive Insulation Tape is specifically engineered to withstand demanding industrial environments.  It utilizes a high-density glass fiber cloth as the base backing, providing the product with unparalleled robustness and heat resistance.  On this foundation, we coat a specially formulated, high-performance pressure-sensitive acrylic adhesive that ensures instant tack and long-term holding power.  Finally, an easy-release silicone-coated liner offers a user-friendly application experience and reliably protects the adhesive layer until the moment of use.  It is more than just a roll of tape;  it is a reliable safeguard for the safety and stable operation of your equipment.

Advantages:

• Exceptional Durability: The backing material combines softness and easy tearability with excellent tear resistance, high mechanical strength (Tensile Strength ≥200N/10mm), and outstanding temperature resistance, reliably operating within a service temperature range of -30℃ to 150℃.
• Powerful Adhesion: The high-quality acrylic adhesive delivers robust initial tack and long-lasting holding power, with an adhesion to steel of ≥4N/10mm, ensuring a secure and reliable bond.
• Long Service Life: It offers a 12-month shelf life under standard storage conditions (21°C / 50% RH, out of direct sunlight), and its material properties provide excellent resistance to aging.

Technical Parameters:

Applications:

• Reliable Electrical Insulation & Structural Fixation: With its exceptional tensile strength and adhesion, this tape is widely used for wrapping transformer coil leads and securing motor and transformer windings, providing reliable and durable insulation protection.
• Battery Pack Safety & Encapsulation Protection: The glass cloth backing offers excellent explosion-resistant and leak-proof properties, making it an ideal insulation wrapping material for high-energy lithium-ion battery packs, significantly enhancing their safety and protection level.
• High-Temperature Shielding & Protection: Suitable for various high-temperature protection scenarios, such as surface masking during high-temperature sandblasting operations, and other industrial applications requiring long-term heat-resistant shielding.

Important Notes:

1. Storage & Shelf Life: 12 months when stored in a cool, dry place at 21°C (70°F) and 50% relative humidity, away from direct sunlight.
2. Surface Preparation: As with all pressure-sensitive tapes, the application surface must be thoroughly clean, dry, and free from contaminants such as grease or oil.
3. Product Use: Users are strongly advised to conduct thorough testing and trial applications to verify the product's suitability for their specific purpose and techniques.
