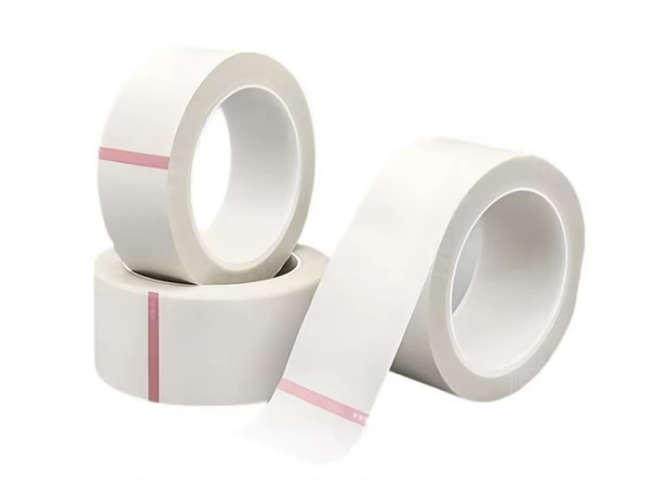

F-Class Adhesive Insulation Tape Fiberglass Cloth Acrylic Adhesive Tape
Price:
by quote
MOQ:
500m2
Delivery Time:
30days
Product Description
F-class Adhesive Insulation Tape Fiberglass Cloth Acrylic Adhesive Tape
Product Description
The F-class Adhesive Insulation Tape is made with an electronic-grade fiberglass cloth backing and a high-temperature resistant acrylic pressure-sensitive adhesive, with a thickness of only 0.17mm. It provides excellent electrical insulation and mechanical strength while ensuring stable performance under high temperatures.
Technical Parameters
| Parameters | Value |
|---|---|
| Base Cloth Thickness | 0.120±0.01mm |
| Total Thickness | 0.170±0.01mm |
| BDV | ≥2.0KV |
| Tensile strength | ≥240N/10mm |
| Thermal grade | F class |
| Adhesive Type H-Class | Pressure-sensitive Acrylic Adhesive |
| Service Temp. | -14~160℃ |
Advantages
- Excellent Heat Resistance: Rated for 160°C continuous use, 180°C short-term. Maintains stability without deformation.
- Strong Adhesion: High tensile strength, tear-resistant. Conforms to irregular surfaces and removes cleanly.
- Reliable Insulation: 2.0kV breakdown voltage, F-class rated. Ensures electrical safety with mechanical durability.
- Easy Handling: Unwinds smoothly without residue. 12-month shelf life in moisture-proof packaging.
Applications
- Electrical Insulation: For tightly binding heat-resistant (Class F) components like motors and transformers.
- Battery Insulation: Provides durable insulation for lithium-power battery packs.
- Pipe Protection: Used for wrapping and insulating high-temperature pipelines.
- Surface Protection: Protects irregular metal / composite surfaces with strong adhesion.
