Polyester Heat Shrink Tubing With Excellent Heat Shrink Tightness And Insulation

Price Negotiable
Price: quoted as per size and quantity
MOQ: 500m
Delivery Time: about 20 days
Product Description
Polyester Heat Shrink Tubing With Excellent Heat Shrink Tightness And Insulation
Product Overview

The Polyester Heat Shrink Tubing is a high-performance insulating sleeve manufactured from premium polyester material. It delivers exceptional heat-shrink properties and reliable electrical insulation, making it perfectly suited for demanding electrical applications. When heated, the tubing tightly conforms to wrapped components, ensuring secure fastening and comprehensive insulation protection.

Technical Specifications
Parameter Specification
Material Polyester
Nominal Inner Diameter 5mm / 10mm
Length 200 m/roll
Insulation Resistance ≥ 1000 MΩ
Dielectric Strength ≥ 4.0 MV/mm
Tensile Strength ≥ 1000 N
Shrinkage Rate ≥ 15%
Key Advantages
  • Excellent Electrical Insulation: High insulation resistance and dielectric strength ensure safe, reliable performance in demanding electrical environments.
  • High Tensile Strength: ≥1000N tensile strength provides exceptional durability and mechanical robustness.
  • Effective Heat Shrinkage: Shrinkage rate ≥15% delivers tight, secure, and sealed wrapping around components.
  • Heat Resistant & Long-Lasting: Maintains stable performance in high-temperature environments with strong aging resistance.
Industrial Applications
  • Large Oil-Immersed Transformers: Binding and securing coil leads and perimeter screens for enhanced safety and performance.
  • Special Motors & Electrical Equipment: Insulating and fixing various motor and electrical coils in industrial settings.
  • High-Insulation Connection Points: Electrical connections requiring superior insulation strength and mechanical fixation.
  • Industrial Fastening & Protection: Heat-resistant and insulated bundling solutions for industrial equipment and machinery.

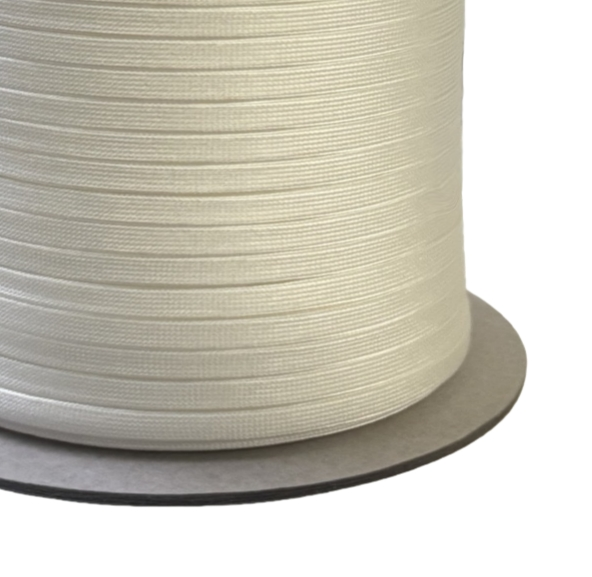

Polyester Heat Shrink Tubing product illustration showing industrial application and technical specifications
