F-class Aramid Paper Insulation Tape With Flame-retardant Acrylic Adhesive

Price Negotiable

Price: quoted as per size and quantity

MOQ: 500 Square meters

Delivery Time: about 30 days

Product Description

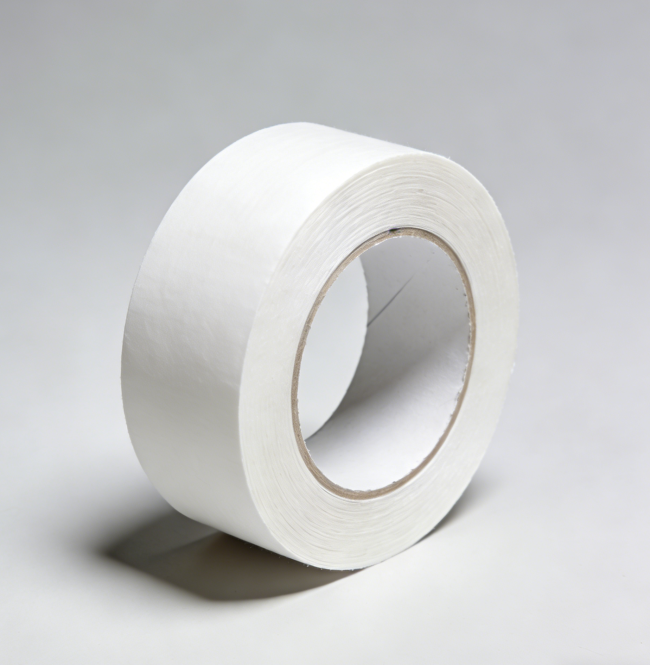

F-class Aramid Paper Insulation Tape With Flame-retardant Acrylic Adhesive

Product Description

The F-class aramid paper insulation tape combines high-performance aramid paper with a flame-retardant acrylic adhesive. Engineered for critical electrical insulation systems, it delivers superior heat resistance, dielectric strength, mechanical durability, and flame-retardant properties—ideal for the most demanding applications.

Technical Specifications

Parameters	Value
Thickness	0.105/0.13/0.18mm
Breakdown Voltage	≥ 1.8/2.4/2.8kV
Tensile Strength	≥ 30/45/90 N/10mm
Long-term Temperature Resistance	F class/155℃

Key Advantages

Exceptional Thermal & Electrical Performance: Stable at 155°C (Class F, non-melting) with high dielectric strength to prevent electrical failure.
Inherent Safety & Durability: Self-extinguishing (meets fire safety standards), resistant to solvents, oils, and corrosion.
Environmental Responsibility: Halogen-free, non-toxic, and emits no harmful substances.

Applications

Motor & Transformer Coils: Ensures F-class insulation integrity in coil end wrapping for enhanced operational durability.
Battery Systems: Safeguards lithium batteries and sensitive electronic components with chemical-resistant insulation.
High-Performance Electronics: Delivers dependable winding insulation for HVT, HID, and other specialty transformers.
