F-class Aramid Paper Tape Adhesive Insulation Tape 0.105mm Thickness

Price Negotiable

Price: quoted as per size and quantity

MOQ: 500 Square meters

Delivery Time: about 30 days

Product Description

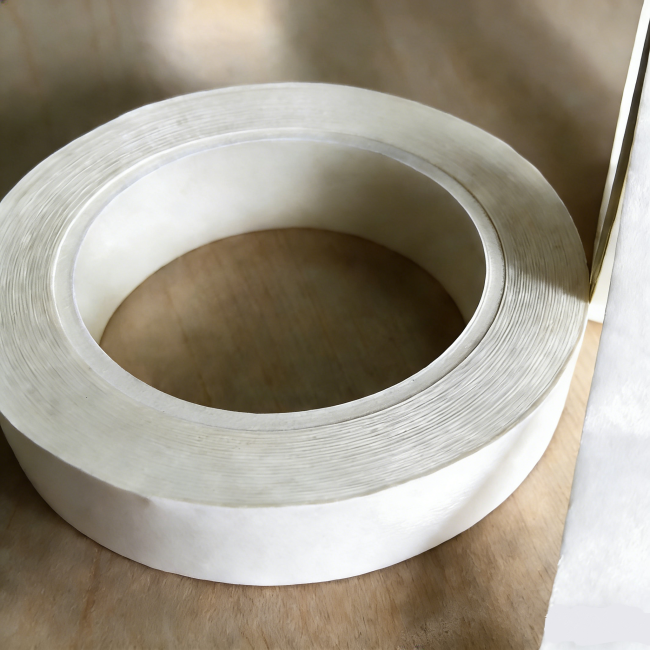

F-class Aramid Paper Tape Adhesive Insulation Tape 0.105mm Thickness

The F-class aramid paper tape is manufactured from high-performance aramid paper and flame-retardant acrylic pressure-sensitive adhesive. As a core component in premium electrical insulation systems, it delivers exceptional heat resistance, electrical insulation, mechanical strength, and flame retardancy for demanding industrial applications.

Technical Specifications

Thickness	0.105 mm
Breakdown Voltage	≥ 1.8 kV
Tensile Strength	≥ 30 N/10mm
Long-term Temperature Resistance	F class/155℃

Key Advantages

High-Temperature Resistance & Safety: Maintains stable performance at 155°C (Class F rated) without melting, ensuring electrical safety in high-heat operating environments.
Electrical Insulation & Flame Retardancy: Provides high dielectric strength to prevent electrical breakdown and is self-extinguishing to meet stringent fire safety standards.
Chemical Resistance & Eco-Friendly Design: Resistant to solvents, oils, and corrosive substances; halogen-free, non-toxic, and free from harmful emissions for safe and environmentally responsible applications.

Applications

Coil End Wrapping: Delivers reliable Class F insulation protection for motor and transformer winding ends, ensuring safe operation in high-temperature environments.
Battery and Electronic Component Insulation: With chemical-resistant properties, effectively protects lithium batteries and precision electronic components, extending service life.
Specialty Coil Wrapping: Particularly suitable for high-voltage transformers, high-intensity discharge lamps, and other demanding electronic transformer winding insulation applications.
