Radial LED Light Low ESR Aluminum Electrolytic Capacitor 10UF 250V
10UF250V Aluminum Electrolytic Capacitor Radial LED Light Low ESR Capacitor
PHT series
FEATURES
1. Low impedance at high frequency.
2. Ideally suited for use ofswitching power supplies andother industrialelectronic product applications.
3. Loda life of8000~ 10000 hours at 105°C
SPECIFICATIONS
Key Features
| Operating Temperature Range | -40°C~+ 105°C | -40°C~+ 105°C | -25°C~+ 105°C |
| Rated Working Voltage Range | 6.3VDC~ 100VDC | 1 60VDC ~450VDC | 450VDC ~ 500VDC |
| Nominal Capacitance Range | 4.7uF ~ 10000uF |
| Capacitance Tolerance | 士20%(M) (+ 25°C,100/120Hz) |
Leakage Current
| LC≤0.01CV or3(uA)which is bigger should be adopted,2 minute application of rated working voltage(+25°C) | LC≤0.02CV+ 10,2 minute appication of rated working voltage, (+25°C) | |
| Nominal Capacitance in uF | Rated working Voltage in V | Leakage Current in uA |
Dissipation Factor
| Rated Working Voltage | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | 160 | 200 | 250 | 400 | 450-500 |
| DF(MAX (+25*C,100/120Hz) | 022 | 0.19 | 0.16 | 0.14 | 0.12 | 0.10 | 0.09 | 0.08 | 0.15 | 0.15 | 0.15 | 0.18 | 0.20 |
| For cpactance of more than 1000 uF, add 0.2 for every increase of 1000 uF |
High Temperature Load Life
After applying rated working voltage for 8000-10000 hours at 105°C and then being stabilized at +25°C,capacitors shall met following Iimits
| Capacitance change | Within 20% of teinitial measured value |
| Dissipation Factor | Les than 200% of the specified value |
| Leakage Currnt | Within specified value |
High Temperature Shelf Life
After storage for 500 hours at 105°C With no voltage applied and then being stabilized at+ 25°C, capacitors shall meet following imits
| Capacitance change | Within + 20% of the initial measured value |
| Dissipation Factor | Less than 200% of the specified value |
| Leakage Current | Less than 200% of the specified value |
Product Details:
Company Profile
BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD
Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. In year 1988, Bor Hurng became one of the first Taiwan enterprises in the circle that invested in China mainland and established its factory in Zhaoqing, Guangdong Province. Land occupation of the factory is 10,000㎡, with the annual capacity of 1.2 billion pieces. And the turnover is over USD$20 million per year. The enterprise is certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.
Capacitor Use:

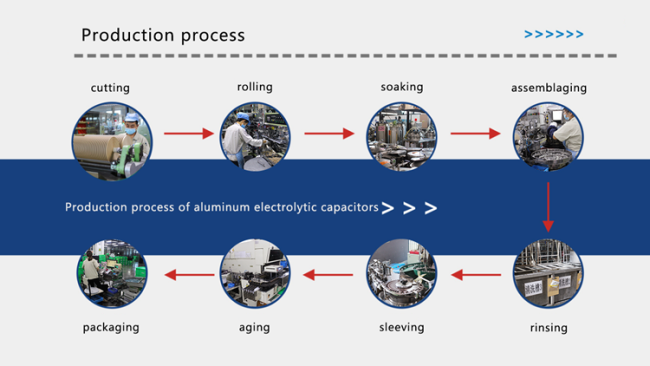

Product Process:
Packing:
Cooperative Company:
Our Certificate
