Xi'an Dongmeng Steel Trading Co.,Ltd.exports various PPGI & PPGL coil, such as RAL color series, wood grain pattern series, camouflage pattern series, stone pattern series, matte pattern series, flower pattern series, etc. Products are exported to the international market, and you are welcome to purchase!
ASTM JIS Pre Painted Galvanized Iron Sheet Coil 0.8mm*1220mm 275g/M2
Price:
$850.00/Tons 50-199 Tons
MOQ:
50 Tons
Delivery Time:
3-30 days
Brand:
Jiameng
Product Description
Dongmeng ASTM JIS Standard 0.8mm Thickness 1220mm Width Prepainted Galvanized Steel Coil Ppgi Color Coated Steel Coil
Product Description
|
Product Name
|
PPGI & PPGL Coil/Sheet, Prepainted Galvanized Steel & Prepainted Galvalume Steel, Color Coated Steel
|
|
Standard
|
EN, DIN, JIS, ASTM
|
|
Thickness
|
0.12-6.00mm (±0.001mm); or customized as required
|
|
Width
|
600-1500mm (±0.06mm); or customized as required
|
|
Zinc Coating
|
20-275g/m2, or customized as required
|
|
Substrate Type
|
Hot dip galvanized steel, Hot dip galvalume steel, Electro galvanized steel
|
|
Surface Color
|
RAL series, wood grain, stone grain, matte grain, camouflage grain, marble grain, flower grain, nano, etc
|
|
Coating Structure
|
PE, SMP, HDP, PVDF, PU
|
|
Steel Grade
|
DC51D+Z, DC52D+Z, DC53D+Z, S280GD+Z, S350GD+Z, S550GD+Z, DC51D+AZ, DC52D+AZ, S250GD+AZ, S300GD+AZ, S350GD+AZ,
S550GD+AZ, SECC, SECE, BLCE+Z, BLDE+Z, BUSDE+Z |
|
Brand
|
Dongmeng
|
|
Origin
|
China
|
Details Images
PPGI & PPGL (prepainted galvanized steel & prepainted galvalume steel) also known as pre-coated steel or color coated steel coil, It is a product made of hot-dip galvanized steel sheet, hot-dip galvalume steel sheet, electro galvanized steel sheet, etc. After surface pretreatment, one or several layers of organic coating are applied on the surface, and then baked and solidified. The color coated steel coil is light in weight, beautiful in appearance, and has good anti-corrosion performance, and can be directly processed. The color is generally divided into gray, sea blue, brick red, etc. It is mainly used in advertising, construction, decoration, home appliances, electrical appliances, Furniture industry and transportation industry. The coatings used for color coated steel coils are based on the environment in which the resin is selected, such as polyester silicon modified polyester, polyvinyl chloride plastisol, polyvinylidene chloride, and the like.
Diagram of Steel Surface Coating And Layers
Production Process
Substrate Type
Hot Dip Galvanized Steel
Hot Dip Galvalume Steel
Electro Galvanized Steel
Coating Type of PPGI & PPGL
Polyester (PE): Good adhesion, rich colors, wide range in formability and outdoor durability, medium chemical resistance, and low cost.
Silicon modified polyester(SMP): Good abrasion resistance and heat resistance, as well as good external durability and chalking resistance, gloss retention, general flexibility, and medium cost.
High Durability Polyester(HDP): Excellent color retention and anti-ultraviolet performance, excellent outdoor durability and
anti-pulverization, good paint film adhesion, rich color, excellent cost performance.
Polyvinylidene Fluoride(PVDF): Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good moldability, stain resistance, limited color, and high cost.
Polyurethane (PU): Polyurethane coating has the characteristics of high wear resistance, high corrosion resistance and high damage resistance. Under normal circumstances, the shelf life is more than 20 years. It is mainly used for buildings with severe environmental corrosion.
Silicon modified polyester(SMP): Good abrasion resistance and heat resistance, as well as good external durability and chalking resistance, gloss retention, general flexibility, and medium cost.
High Durability Polyester(HDP): Excellent color retention and anti-ultraviolet performance, excellent outdoor durability and
anti-pulverization, good paint film adhesion, rich color, excellent cost performance.
Polyvinylidene Fluoride(PVDF): Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good moldability, stain resistance, limited color, and high cost.
Polyurethane (PU): Polyurethane coating has the characteristics of high wear resistance, high corrosion resistance and high damage resistance. Under normal circumstances, the shelf life is more than 20 years. It is mainly used for buildings with severe environmental corrosion.
Main Features of PPGI & PPGL
1.Good durability and long life compared with galvanized steel.
2.Good heat resistance, less discoloration at high temperature than galvanized steel.
3.Good thermal reflectivity.
4.Processability and spraying performance similar to galvanized steel.
5.Good welding performance.
6.Good performance-price ratio, durable performance and extremely competitive price.
Company Introduction
Xi 'an Dongmeng Steel Trading Co., Ltd is located in Xi'an city of Shaanxi province, China. We are the main manufacturer and supplier of iron steel and aluminum, and our products cover carbon steel, alloy steel, stainless steel, galvanized products, aluminum including pipe,sheet,coil, bar, fittings etc. All of our products are manufactured by latest manufacturing techniques with our advanced equipment which can better achieve modern highest technology and customer's various requirements. We have obtained ISO9001: 2000 quality management system certification, and the quality certification from the well-known certification company, also our products meet the standard of ASTM, DIN,JIS, and GB. Under the good supportive policy and fund support from our government, we are willing to surrender part of our profits to clients to achieve mutual benefit and win-win results. With well-deserved reputation, excellent quality, and competitive price, we are looking forward to even greater and longer lasting cooperation with overseas customers.
Our Services & Strength
We have advanced technology and equipment, strict detection means, scientific management to guarantee the high-quality, stability and reliability for every batch of product dispatched from the factory. Also, our company has many years of foreign trade experience and has established long term trade cooperation with many foreign companies. All of us are ready to start the business cooperation with you.

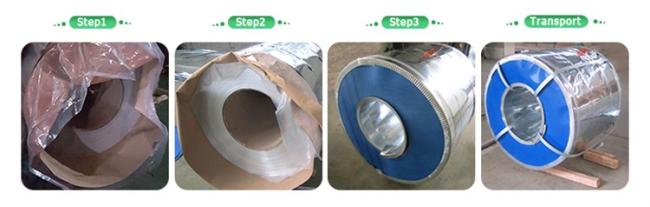

Packing&Shipping
Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement
FAQ
Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:How long does your delivery time take?
A:In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large or special circumstances occur.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:How long does your delivery time take?
A:In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large or special circumstances occur.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.
