LFP Batteries 12V 100Ah LiFePO4 Battery Cell 3.2v For High Power EV Car Solar System
LFP Batteries 12V 100Ah LiFePO4 Battery Cell 3.2v for High Power EV Car Solar System
Description of 12V100Ah LiFePO4 Battery:
LiFePO4 battery has no memory effects and highly efficient charge: no matter what state the battery is on, it can be charged or used at any time, no need to charge it under the situation of fully discharged.

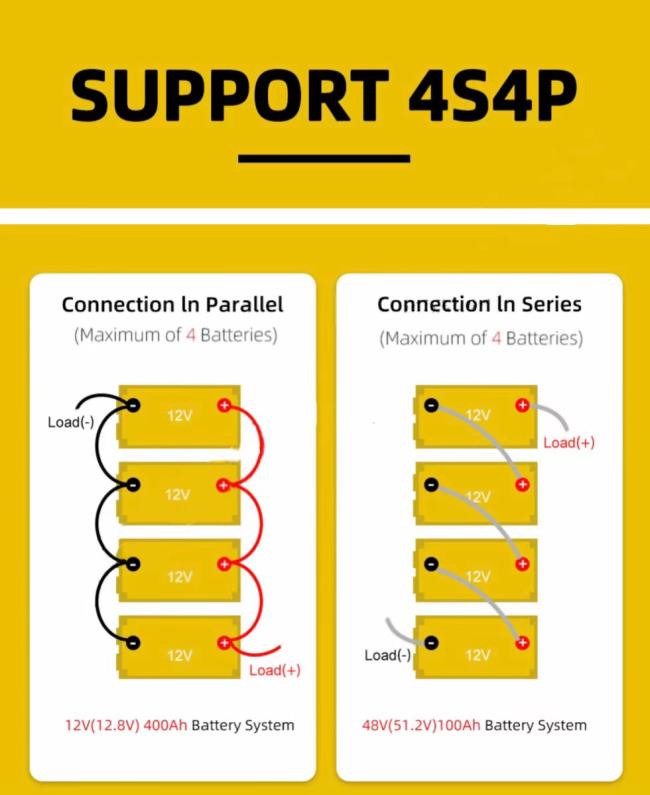

For connect in series: If you need connect batteries in series, they should be at the same state-of-charge (SOC)before they are connected.
Specification of 12V100Ah LiFePO4 Battery
| Electrical Characteristics |
Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah | |
| Energy | 1280Wh | |
| Internal Resistance | ≤50mΩ | |
| Cycle Life | ≥ 2000 times(70% DOD) | |
| Self Discharge | ≤3.5% per month at 25℃ | |
| Standard Charging | Max.Charging Voltage | 14.6V |
| Charging Mode | At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C | |
| Standard Charge Current | 20A | |
| Max.Charging Current | 100A |
|
Standard Discharging
|
Max. Continuous Current | 100A |
| Discharging Cut-off Voltage | 9.2V | |
| Operating Condition | Charge Temperature | 0~+45℃ |
| Discharge Temperature | -10~ +65℃ | |
| Storage Temperature | 0℃~45℃ | |
| Relative Humidity | ≤75%RH | |
| Structure | Cell & Format |
GSP34135214F-3.2V100AH 4S1P |
| Casing | ABS | |
| Dimension(L*W*H*TH) | 324*168*223mm | |
| Weight | Approx. 12Kgs | |
| Terminal | M8 |
Features & Benefits:
■ maintenance-free, extremely cycle-resistant
■ very high energy density, long shelf life
■ Lithium technology,can be used in any position
■ low weight, compact dimensions
Application of LifePO4 12V100Ah Battery:
> Wind-Solar energy system
> Solar street lights
> Off-grid energy storage
> Household energy storage
> Telecom backup system
> Mobile base stations
> Emergency backup energy sources
> uninterruptible power system
> Grid load shifters
> Electric Golf Car
> Electric vehicles
> Electric motorcycles
> Electric forklifts
> Electric boats, etc.
Operation Notice:
> Do not heat the battery directly or thrown into a fire.
> Do not assemble or store in high temperature (over 60℃) environment
> Do not short-circuit the battery directly.
> Do not use acid corrosion of the battery casing.
> Do not throw it into water or put in wet environment.
> Do not knock, impact the battery.
> Do not anatomy cell or change the internal structure of the battery.
FAQ:
Q1. What is the biggest difference between your battery and other supplier’s?
A: Safest with longer lifespan.
Q2. How about your LiFePO4 Battery delivery time?
A: 25 workdays around after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q3: How about your warranty?
A: 5 years warranty
Q4. Is this Lithium LiFePO4 Battery safe?
A: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion at any circumstance; price to ensure our customers benefit.
