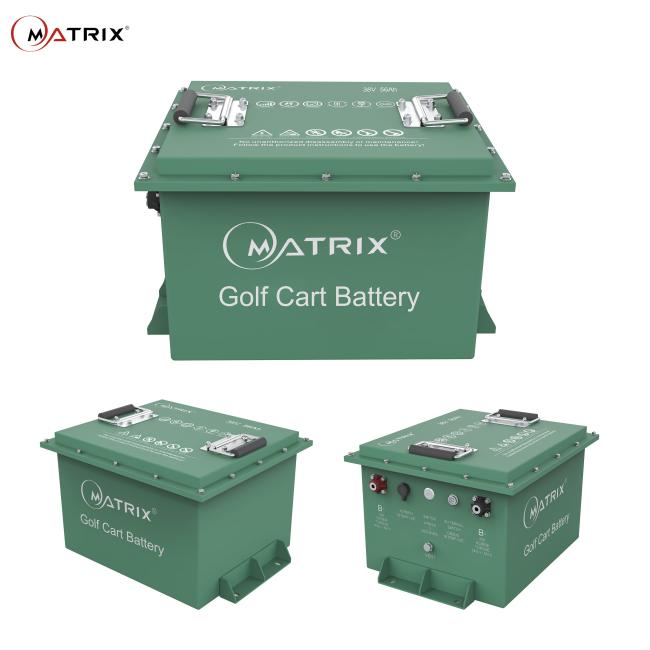

36V 56ah LiFePO4 battery pack for Golf Cart Deep Cycle Battery with 3500 Life Cycles
36V 56ah LiFePO4 battery pack for Golf Cart Deep Cycle Battery with 3500 Life Cycles
Challenge your limits and enjoy the freedom that comes with having more usable energy in a lightweight, no-maintenance package that’s safe, reliable, and worry-free. MATRIX has one of the largest LiFePO4 product offerings available that power a range of applications, on and off the grid. Our wide variety of standard and high-performance batteries ensure we have what you need when you need it.
Advantages of Lithium LiFePO4 Battery Pack
- Lightweight
- Ability to hold a charge
- Low self-discharge rates
- High energy density
- Very high current to applications
- Fast charging rates compared to lead acid batteries
Specification:
| Electrical Characteristics |
Nominal Voltage | 36V |
| Nominal Capacity | 56Ah | |
| Energy | 2016Wh | |
| Cycle Life | ≥ 3500 times(70% DOD) | |
| Self Discharge | ≤3% per month at 25℃ | |
| Standard Charging | Max.Charging Voltage | 42~43.8V |
| Charging Mode (@ 25℃ ) | Constant Current: ≤0.5C Constant Voltage:3.65V End Contition(Cut off):≥0.02C | |
| Charging Current | 22A | |
| Max.Charging Current | 28A | |
| Standard Discharging | Discharging Current | 50A |
| Max.Pulse Current | 200A(<10S) | |
| Discharging Cut-off Voltage | 30 | |
| Operating Condition | Charge Temperature | 0℃ to 55℃ @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 55℃ @60±25% Relative Humidity | |
| Storage Temperature | 0℃ to 55℃@60±25% Relative Humidity | |
| Water Dust Resistance | IP67 | |
| Structure | Cell & Format | LF50K(3.2V 50Ah),12S1P |
| Casing | iron | |
| Dimension(L*W*H*TH) | 385*338*245 mm | |
| Weight | Approx. 27 kg | |
| Terminal | M8 |
Precautions for Use
1. This is a rechargeable Lithium-Ion battery.
2. Use the proper charger to charge your battery.
3. Never leave batteries unattended while charging.
4. Do not short circuit.
5. May explode if damaged or disposed of in fire.
6. Ensure they are suitable for the device and/or Atomizer combination.
7. Do not use if damaged.
8. Do not overcharge.
9. Do not over-discharge.
10. Dispose of old or damaged batteries properly.
11. Contact us if you have any questions before purchasing this device.
