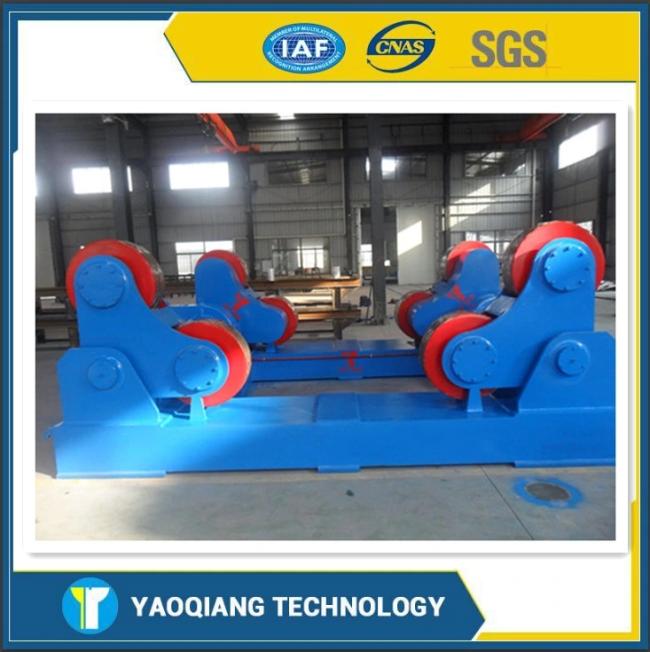

HGZ 5T Self Adjustable Welding Rotator Rubber Wheel
HGK 5T Rubber Wheel Self Adjustable Welding Rotator Welding Turning Rolls Welding Roller
Welding rotor is an advanced welding equipment developed by absorbing domestic and international advanced equipment.
Mainly used for assembling, polishing and welding of pipelines, boilers, pressure vessels, fuel tanks and other cylinders.
Self-Adjust Welding Rotator Roller
1.Equipment structure types:Fixed or Mobile(Optional);
2.Driving mode:single,double speed reducer drive motor
3.Roller quantity:8/set
4.Rolled steel:steel&rubber rollercombined.
5.Mode:AC frequency conversion stepless speed
6.Support workpiece:clamp ampere frame automatically open&automatic reset
7.Electrical system:the remote control cabinet+box(line 10-15m)or pedal switches.

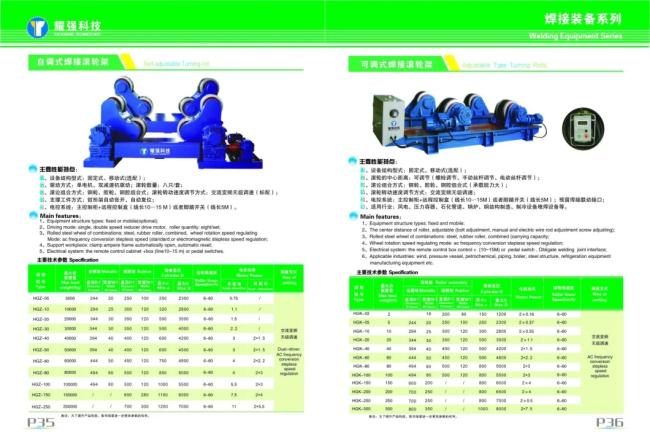

| model | max. load kg | allowed work piece | wheel diameter and width | wheel linear speed | motor power | speed adjustment method | ||
| (mm) | (mm) | (m/h) | (kw) | |||||
| rubber | metal | single drive(kw) | dual-drive(kw) | |||||
| HGZ5 | 5000 | Φ250-2300 | Φ250×100 | 2×Φ244×20 | 6-60 | 0.75 | / | AC frequency converter stepless speed adjust. |
| HGZ10 | 10000 | Φ320-2800 | Φ300×120 | 2×Φ294×25 | 6-60 | 1.1 | / | |
| HGZ20 | 20000 | Φ500-3500 | Φ350×120 | 2×Φ344×30 | 6-60 | 1.5 | / | |
| HGZ30 | 30000 | Φ500-4000 | Φ350×120 | 2×Φ344×30 | 6-60 | 2.2 | / | |
| HGZ40 | 40000 | Φ600-4200 | Φ400×120 | 2×Φ394×40 | 6-60 | 3 | 2*1.5 | |
| HGZ50 | 5000 | Φ600-4500 | Φ400×120 | 2×Φ394×40 | 6-60 | 3 | 2*1.5 | |
| HGZ60 | 60000 | Φ750-4800 | Φ450×120 | 2×Φ444×50 | 6-60 | 4 | 2*2.2 | |
| HGZ80 | 80000 | Φ850-5000 | Φ500×120 | 2×Φ494×60 | 6-60 | 4 | 2*3 | |
| HGZ100 | 100000 | Φ1000-5500 | Φ500×120 | 2×Φ494×80 | 6-60 | 5.5 | 2*3 | |
| HGZ150 | 150000 | Φ1100-6000 | Φ600×280 | / | 6-60 | 7.5 | 2*4 | |
| HGZ250 | 250000 | Φ1200-7000 | Φ700×300 | / | 6-60 | 11 | 2*5.5 |
|
