CE 3 In 1 H Beam Welding Line 6-20mm , H Beam Flange Straightening Machine
H Beam Flange Web Automatic Centering Assembly Spot Welding And Hydraulic Straightening Machine

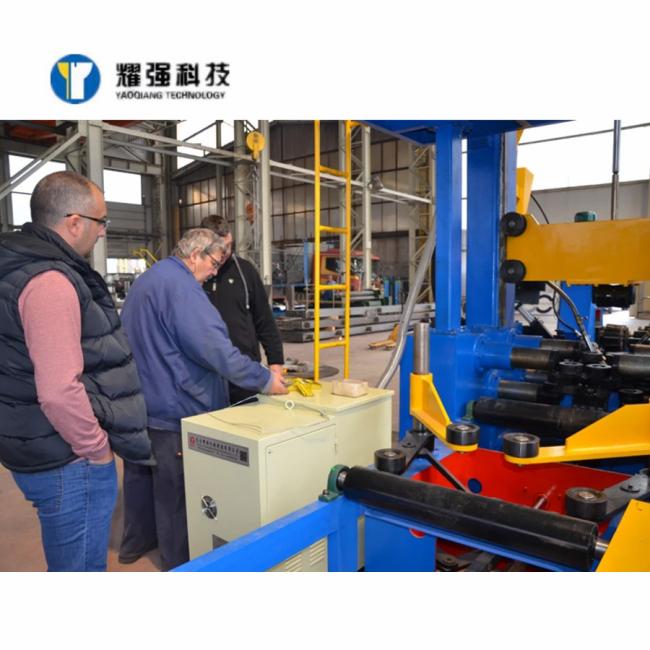

This is a H-shaped steel assembly, straightening and welding integrated machine that we have applied for a patent and obtained CE certification. At present, it has been widely praised at home and abroad, and this three-in-one machine 3in1 welding line has been exported to many countries.
The machine mainly includes:
Automatic spot welding assembly machine
Hydraulic straightening machine (can be modified into a small straightening machine for independent use according to customer requirements)
Submerged arc welding single arc double wire or single arc single wire automatic welding machine
| Type | Web height | Thickness of the web | Welding speed | Flange width | Thickness of flange | Overall power |
| YQPJ1000 | 1000mm | 6-16 mm | 0.35-3 m/min | 200-800 mm | 6-20 mm | 13.4 kw |
| YQPJ1200 | 1200mm | |||||
| YQPJ1500 | 1500mm |
Supply matching:
Frame;
Console;
Pre assembled mechanism;
Feed roller table;
Delivery roller table;
2 sets of welding machine;
Hydraulic station;
Mushroom shaped deformation correcting mechanism for beam;
Welding console -2 sets for wire feed mechanism;
Wire box -2 parts;
Hydraulic hose;
Flux cycle system ----2 set;
Work platform and ladder;
The supply does not include:
1. foundation;
2. connect to the power and air source of the equipment;
3. equipment grounding;
4. welding wire or flux etc
.
