60T Welding Rotator Machine 120mm 4800mm Rubber Polyurethane Rollers
PU Rubber Polyurethane rollers Adjustable Welding Rotator turning rollers max loading 60 Tons
There are many types of welding runners, self-adjusting roller racks and adjustable roller racks.

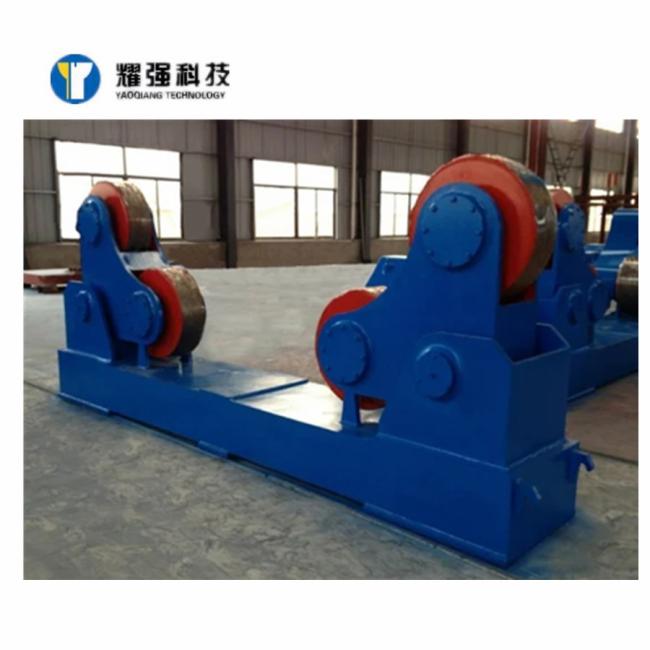

Among them, the self-adjusting roller frame is an adjustable steering roller with 8 metal or rubber wheels (according to customer requirements), and the adjustable roller frame is a screw adjustable steering roller with 4 metal or rubber wheels.
The carrying capacity can be from 1000kg to 800ton.
Adjustable turning rolls
| Model | Max load | Metallic wheel diameter | Metallic wheel width | Rubber wheel diameter | Rubber wheel width | Min cylinder diameter | Max cylinder diameter | Power | Roller linear speed |
| HGZ-60 | 60 T | 444mm | 50mm | 450mm | 120mm | 500mm | 4800mm | 2*2.2kw | 6-60m/h |
Feature:
1. Polyurethane rollers, rubber rollers or steel rollers make our machines last longer and have lower noise than other machines.
2. Our products have anti-creeping function, install pipeline hydraulic lifting, and walk automatically or manually on the track.
3. The swing angle of the roller set can be automatically adjusted according to the diameter and size of the workpiece, without manual calibration.
Compare of these two different types:
| Item | self-Adjustable | Adjustable |
| Wheel Number | 8 sets | 4 sets |
| Drive type | Single/Dual Driver | Dual Driver |
| Supporting Ports | 4 | 2 |
| Middle distance | Fixed | Adjustable |
| For bigger Cylinder | Function better | Standard |
Including: (1) drive unit, (1) idler unit, (1) control box with manual panel
Voltage: 110V-600V
Painting color: Customized
Place of Origin: Wuxi, China (Mainland)

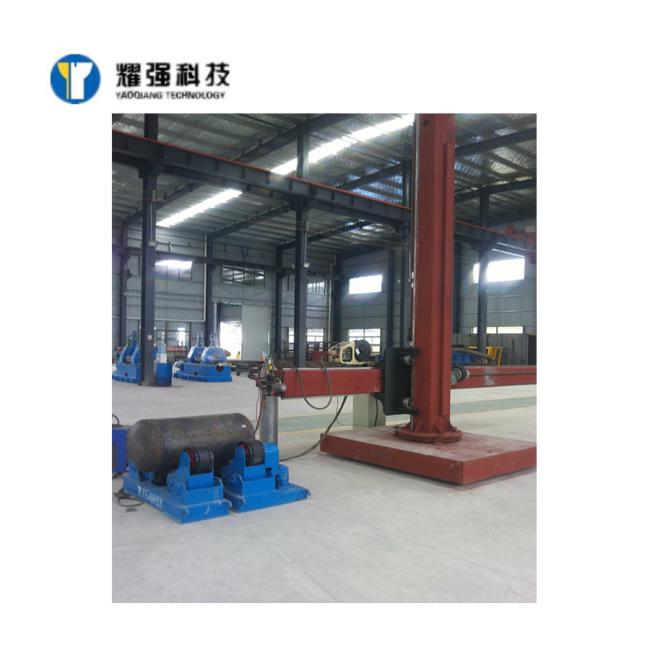

This welding rotator can be matched with various automatic welding or manual welding to improve welding quality, reduce welding labor, and improve production efficiency.
Application:
1. Pressure vessels.
2. Pipe manufacturing industries
3. Wind power fabrication
4. Chemical & fuel storage tank fabrication
5. Any heavy cylindrical job
6. Customized special welding rotators according to client's requirements.
