Saw Seam Welding Machine welding manipulator for Pipe Tube and Tank

HJ-type welding machine with a series of guided-bearing force, the steering wheel contact surface width, the transmission is more stable and reliable advantages.

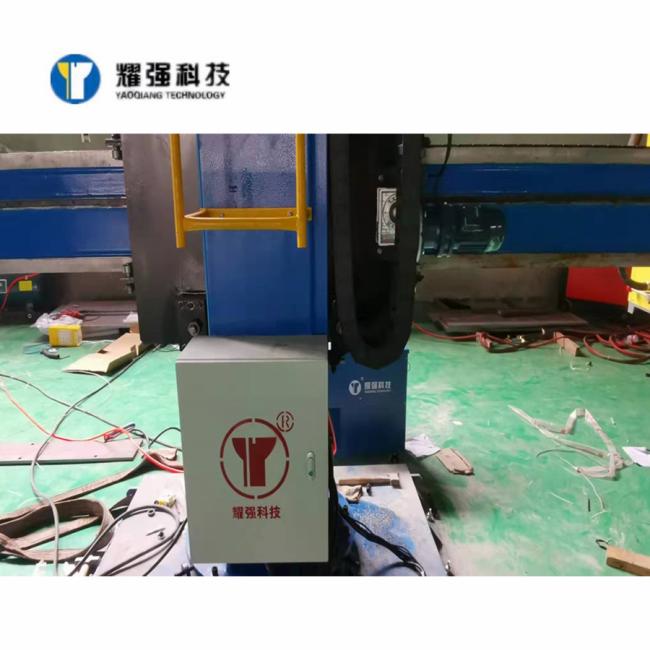

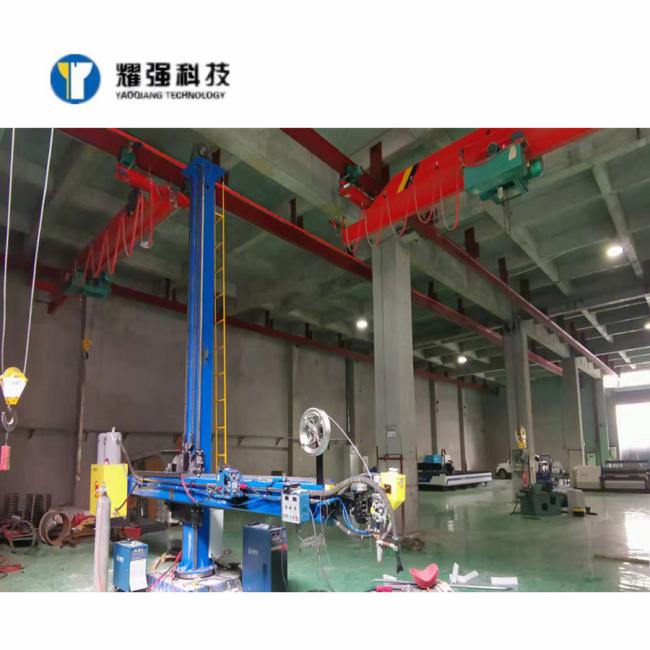

The equipment mainly by the mobile car, column manual rotary components (large slewing support) column binding pieces, cross-arm combination, guide device, lifting mechanism, arm stretching drive, electric cross-regulation components and ladder guarding
composition.

The column for the rectangular beam, rectangular double-track structure, high-quality carbon steel guide material. The column is welded and assembled with standard profiles (the internal design has inner ribs, which can prevent cantilever bending of the column).

After welding, the internal stress is machined.

Column and guide block clamping method for each guide are three surface clamping, more stable than the use of triangular rails and reliable.

The same arm assembled with sheet metal forming, rectangular double-track structure, the guide material for high-quality carbon steel, tempering after welding and then machining, to ensure straightness after processing and equipment operation of the stability. In addition to the horizontal arm welded with standard profiles assembled (the internal design of the inner ribs, can effectively prevent the stretching arm bending, the arm of the telescopic sag and degree of winding was further control).
