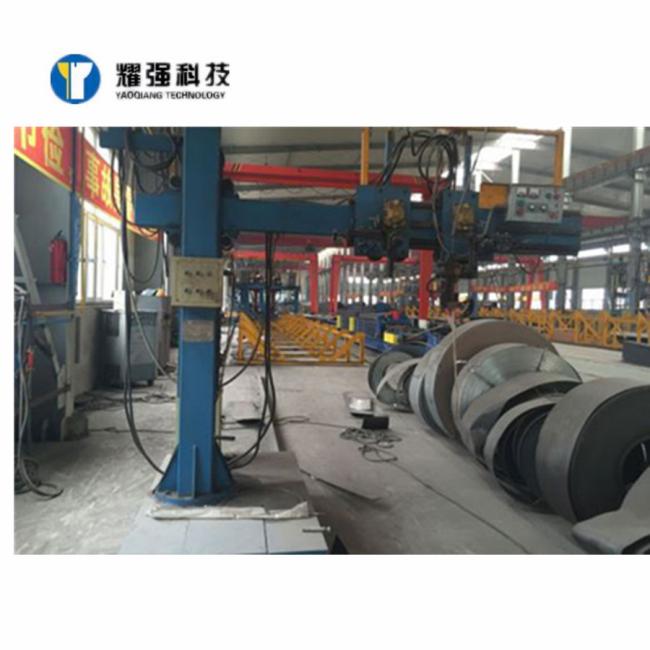

16-100mm Cantilever Welding Machine For Welding Box Girder Cover Plate And Internal Rib Plate

XDZ-1000 cantilever fuse electroslag welding machine for Welding Box Girder Cover Plate and Internal Rib Plate

Cantilever wire electrode electroslag welding machine is equipped with ZHS wire electrode electroslag welding machine.

It is a complete set of welding equipment for box beam partition welding.

It can be welded with assembly machines, U-shaped and box-shaped assembly machines, and gantry submerged arc welding.

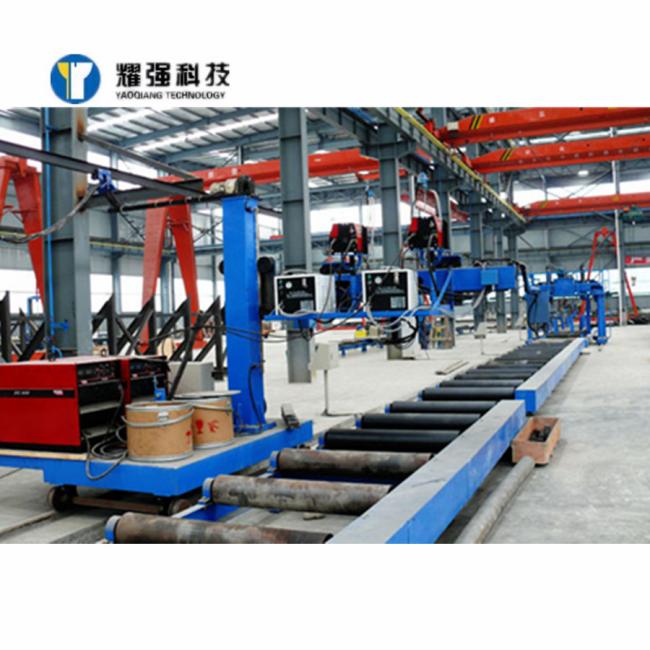

The machine and auxiliary equipment such as face milling, drilling, conveying, turning, shot blasting and other auxiliary equipment form a box beam automatic welding production line.

Specification:

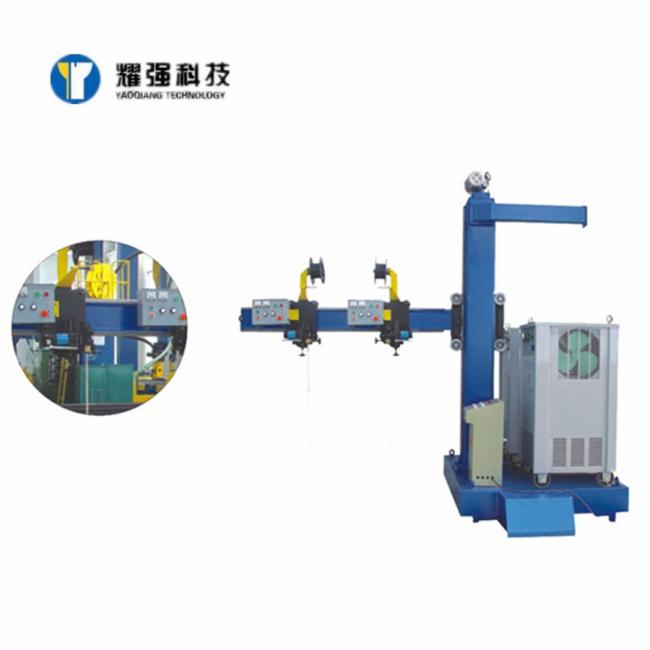

The cantilever type electroslag welding machine is mainly composed of a chassis, a column, a lifting arm, a welding movable body, a welding cross adjusting device, a welding wire reel and a guide wire device, an arc ignition device, etc.

Scope of supply:

1. Cantilever fuse electroslag welding machine host (including movable cantilever trolley, etc.)
2. Host electric control system (including electric control box, operation box, etc.)
3. Fuse electroslag welding control system (including welding control box, relay box, swing arc device, welding gun lifting device, welding wire straightening device, clamping device, water-cooled cable, control cable, etc.)
4. Water cooling system (including water cooling box, water pipe, etc.)
5. Welding gun and accessories (including wire guide tube, contact tip, welding gun, etc.)
6. Sliding frame trolley (without power cord)
7. DC600 welding power supply
8. Wire Feeder
9. Welding cable from welding power source to host (length needs to be arranged according to the process)
