96 Samples Nucleic Acid Purification System 4/8 Channel

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 2 weeks after payment

Brand: Aikang

Product Description

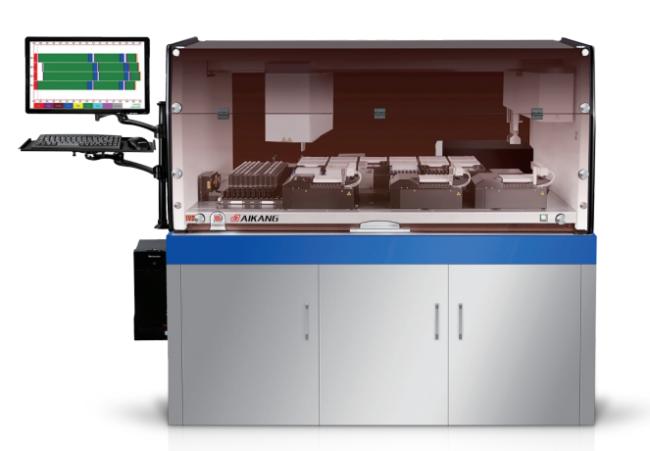

AK-N15B Automatic Nucleic Acid Extraction Analyzer

Product parameters:

Purification method	Magnetic bead extraction method
Throughput	96 samples
Sample position	96
Reagent position	40 original reagent positions, 16 50ml universal reagent positions
Experimen carrier	96 deep well plates (96dpl)
Mechanical arm	1-2
Sampling channel	4/8 channel
Pipette tips	50ul, 200ul, 1000ul black conductive pipette tip, built-in filter
Sampling amount	2-1000ul
Sampling accuracy	Amount	CV	Accuracy	Specification
	2ul	≤10%	≤8.9%	50ul
	4ul	≤4.0%	≤6.5%	50ul
	5ul	≤4.0%	≤6.3%	50ul
	8ul	≤3.5%	≤6.0%	50ul
	10ul	≤1.5%	≤6.0%	50ul
	25ul	≤1.4%	≤3.0%	200ul
	50ul	≤1.0%	≤2.0%	1000ul
	100ul	≤0.5%	≤2.0%	1000ul
	1000l	≤0.5%	≤0.5%	1000ul
Heating method	Bath heating
Temperature range	RT-85℃
Rate of temperature increase	≤2min(RT-85℃)
Precision of temperature control	±0.5℃
Temperature uniformity	±0.5℃
Temperature fluctuation	±0.3℃
Oscillation Mode	Horizontal circumferential oscillation
Oscillation speed	0-1500r/min
Amplitude	2.5mm

Introduction

Adopting magnetic bead separation technology,AK-N15B can automatically complete the whole procedure including lysis,adsorption,cleaning, washing and recycling etc.The automatic operation ensures the stability of experimental results and avoids the errors caused by manual operation.It can extract and purify 96 samples at the same time.A wonderful Lab analyzer for clinical genetic testing.

Features

High working efficiency: add 96 samples ≤ 6 minutes.
Fast separation: 9×13 magnetic bead separation rack
Flexible: can be placed in various specifications of the original reagent bottles
High sampling accuracy:
