Whole Blood Fluorescence Immunochromatography
Product description
YFA1200 is a portable point-of-care testing system with fluorescence immunochromatographic (FIA) principle,and it is widely used in public health fields such as clinical testing, health management food safety monitoring and so on. The communication port of YFA 1200 concludes USB/RS232/LAN, available for LIS,which is convenient to be placed in standard laboratories, large hospitals and primary level medical institutions.
Medical machine Lab 8'' touch screen display Fluorescence Immunoassay (FIA) -YFA1200
product parameters:
| Measurement principle | Fluorescence immunochromatography |
| Sample type | Whole blood, serum, plasma, fingertip blood |
| Throughput | 120 test/hour |
| Incubation position | 12 channels |
| Test mode | On-demand test, random combination of test items in the same run |
| Display | 8’’ color touch screen |
| Communication port | USB/RS232/LAN, available for LIS |
| Printer | Built-in thermal printer or external printer |
| Dimensions | 470×320×320 mm |
| Weight | 15 kg |
Features:
Reliable:
- Use Fluorescence Immunoassay technology with high sensitivity and accuracy
- Support up to 12 tests at the same time
Fast:
- The result can be get in 3~15 min
- 24 h/day standby
Convenient:
- Compact design of the analyzer for point-of-care testing
- Reagent information is scanned by the sacnner automaticly
Easy operation
Sampling
After adding the sample, the reaction time is 5-10mins
Card insertion
Reagent card insertion
Test
Read test items
When the test is completed, the system automatically discards the card
Result
Built-in thermal sensitive printer to print test results
Test menu:
The test menu are shown as the picture below:
|
Cardiac Markers cTnI NT-proBNP D-Dimer CK-MB* Myo* cTnI/NT-proBNP* cTnI/CK-MB/Myo*
|
Inflammation PCT CRP SAA HBP* CRP/SAA* PCT/IL6* |
Kidney Function CysC β2-MG
|
|
Fertility AMH* β-HCG* PAPP-A*
|
Bone Metabolism 25-OH-VD* PTH* |
Company profile

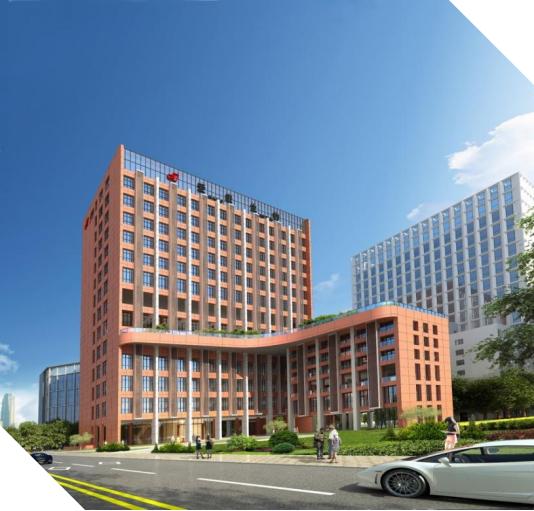

Aikang Group is a national high-tech enterprise specialized in R&D, production, sales and service of medical devices. Founded in 2003, Aikang is headquartered in Shenzhen China and has established three R&D and production bases with a total area of 30,000 sqm and hundreds of employees.

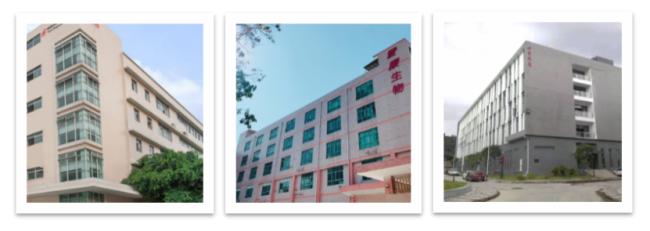

Aikang has three Manufacture Bases:
Aikang MedTech Co., Ltd. for medical automation solutions, Aikang Diagnostic Co., Ltd. for in-vitro diagnostic solutions and Aisikang MedTech Co., Ltd. for medical consumables.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
