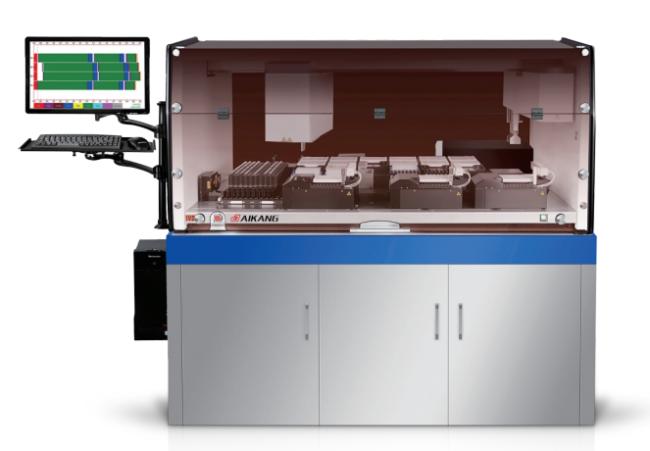

99% Recovery Automated Nucleic Acid Extraction System DNA RNA 96 Samples
96 sample 99% recovery automatic nucleic acid extractor DNA-RNA extraction system
Product parameters:
| Purification method | Magnetic bead extraction method | |||
| Throughput | 96 samples | |||
| Sample position | 96 | |||
| Reagent position | 40 original reagent positions, 16 50ml universal reagent positions | |||
| Experimen carrier | 96 deep well plates (96dpl) | |||
| Mechanical arm | 1-2 | |||
| Sampling channel | 4/8 channel | |||
| Pipette tips | 50ul, 200ul, 1000ul black conductive pipette tip, built-in filter | |||
| Sampling amount | 2-1000ul | |||
| Sampling accuracy | Amount | CV | Accuracy | Specification |
| 2ul | ≤10% | ≤8.9% | 50ul | |
| 4ul | ≤4.0% | ≤6.5% | 50ul | |
| 5ul | ≤4.0% | ≤6.3% | 50ul | |
| 8ul | ≤3.5% | ≤6.0% | 50ul | |
| 10ul | ≤1.5% | ≤6.0% | 50ul | |
| 25ul | ≤1.4% | ≤3.0% | 200ul | |
| 50ul | ≤1.0% | ≤2.0% | 1000ul | |
| 100ul | ≤0.5% | ≤2.0% | 1000ul | |
| 1000l | ≤0.5% | ≤0.5% | 1000ul | |
| Heating method | Bath heating | |||
| Temperature range | RT-85℃ | |||
| Rate of temperature increase | ≤2min(RT-85℃) | |||
| Precision of temperature control | ±0.5℃ | |||
| Temperature uniformity | ±0.5℃ | |||
| Temperature fluctuation | ±0.3℃ | |||
| Oscillation Mode | Horizontal circumferential oscillation | |||
| Oscillation speed | 0-1500r/min | |||
| Amplitude | 2.5mm | |||
Introduction
Adopting magnetic bead separation technology,AK-N15B can automatically complete the whole procedures including lysis,adsorption,cleaning, washing and recycling etc.The automatic operation ensures the stability of experimental results and avoids the errors caused by manual operation.It can extract and purify 96 samples at the same time.A wonderful Lab analyzer for clinical genetic testing.
Principle:
After the sample is lysed by the lysis solution,the lysed nucleic acid will specifically adsorbed by the magnetic beads. Through the cooperation of the washing solutionⅠ,washing solutionⅡ,elution buffer and magnetic rod,various impurities that are not specifically bound to the magnetic beads are removed,and the magnetic beads adsorbing the nucleic acid are separated from the lysis solution. Finally, removing the magnetic beads,the nucleic acid molecules are dissolved in the elution buffer.
Features
- High working efficiency:add 96 samples ≤ 6 minutes
- Fast separation:9×13 magnetic bead separation rack
- High efficiency:small amplitude,during the oscillation,sampling operation can be carried out
- Data interface:smoothly connect with PCR post-processing system
- Flexible:can be placed in various specifications of the original reagent bottles
- High sampling accuracy:
