4/8 Channels Nucleic Acid Extraction System
Introduction
Adopting magnetic bead separation technology,AK-N15B can automatically complete the whole procedure including lysis,adsorption,cleaning, washing and recycling etc.The automatic operation ensures the stability of experimental results and avoids the errors caused by manual operation.It can extract and purify 96 samples at the same time.A wonderful Lab analyzer for clinical genetic testing.

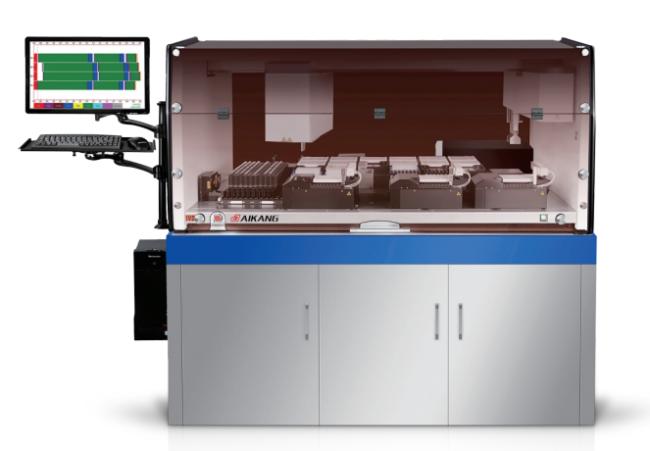

96 deep-well plate 4/8 channels Automatic Nucleic Acid Extraction Analyzer-AK-N15B
Product parameters:
| Purification method | Magnetic bead extraction method | |||
| Throughput | 96 samples | |||
| Sample position | 96 | |||
| Reagent position | 40 original reagent positions, 16 50ml universal reagent positions | |||
| Experimen carrier | 96 deep well plates (96dpl) | |||
| Mechanical arm | 1-2 | |||
| Sampling channel | 4/8 channel | |||
| Pipette tips | 50ul, 200ul, 1000ul black conductive pipette tip, built-in filter | |||
| Sampling amount | 2-1000ul | |||
| Sampling accuracy | Amount | CV | Accuracy | Specification |
| 2ul | ≤10% | ≤8.9% | 50ul | |
| 4ul | ≤4.0% | ≤6.5% | 50ul | |
| 5ul | ≤4.0% | ≤6.3% | 50ul | |
| 8ul | ≤3.5% | ≤6.0% | 50ul | |
| 10ul | ≤1.5% | ≤6.0% | 50ul | |
| 25ul | ≤1.4% | ≤3.0% | 200ul | |
| 50ul | ≤1.0% | ≤2.0% | 1000ul | |
| 100ul | ≤0.5% | ≤2.0% | 1000ul | |
| 1000l | ≤0.5% | ≤0.5% | 1000ul | |
| Heating method | Bath heating | |||
| Temperature range | RT-85℃ | |||
| Rate of temperature increase | ≤2min(RT-85℃) | |||
| Precision of temperature control | ±0.5℃ | |||
| Temperature uniformity | ±0.5℃ | |||
| Temperature fluctuation | ±0.3℃ | |||
| Oscillation Mode | Horizontal circumferential oscillation | |||
| Oscillation speed | 0-1500r/min | |||
| Amplitude | 2.5mm | |||
Features
- High working efficiency: add 96 samples ≤ 6 minutes.
- Fast separation: 9×13 magnetic bead separation rack
- Flexible: can be placed in various specifications of the original reagent bottles
- High sampling accuracy:
