Round Filter Bag Cage with Venturi Blower Organosilicone Medium Material
Round Filter Bag Cages with Venturi Blower Supplier
Product Description
Company Info.
Customer Question & Answer
Basic Info.
Product Description
Dust Collector introduction
|
Specifications |
|||
|
Types: |
Round Style/Flat Style/Envelope Style/ Special Style |
||
|
Number Of Wires: |
8/10/12/16/20/24 vertical wires |
||
|
Ring Space: |
Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm) |
||
|
Cage Diameter: |
Cage diameters range from 4 inch to 8 inch (100mm to 200mm) |
||
|
Wire thickness: |
Wire thickness ranges are 2mm to 5mm |
||
|
Material: |
Carbon Stee, Galvanized Steel, Stainless Steel |
||
|
Finishment: |
Epoxy, PVC vinyl coating |
||
|
Packaging: |
Cages are packed in custom designed cartons |
||
|
Usage: |
Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments. |
||
|
Advantages: |
1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel 6.easy to install |
||
|
Standard Technical Data |
|||
|
Round Style |
Diameter(mm) |
Bag Diameter(mm) |
Length(mm) |
|
115 |
120 |
2000,2400 2800, |
|
|
125 |
130 |
||
|
147 |
152 |
||
|
195 |
200 |
||
|
Flat Style |
Perimeter |
Bag Perimeter |
Length(mm) |
|
800 |
800 |
2000 3000 4000 |
|
|
900 |
900 |
||
|
Envelope Style |
Length Width Thickness |
Bag Length Width Thickness |
|
|
1500X750x25mm |
1500X750x25mm |
||

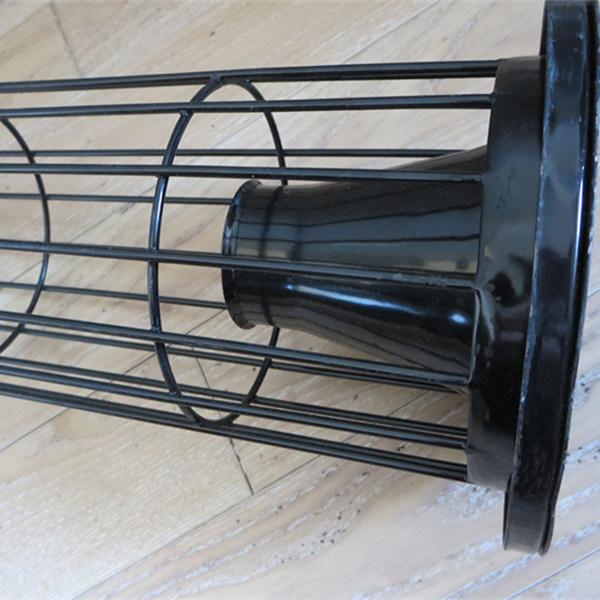

Round shape filter cage
2. Sufficient strength and stiffness to prevent damage and deformation.
3. The top is equipped with a cold stamping short tube to ensure the safety of the cage and the protection of the filter bag.
Filter cage material
2. Ensure straightness and distortion. Filter bag frame is smooth and burr free after welding.
3.There is sufficient strength without soldering, no soldering, virtual welding and missing welding.
Galvanizing technology
2.It avoids the corrosion of the skeleton surface and the adhesion of filter bags after a period of time.
3.The bag is guaranteed to be smooth and the damage to the bag is reduced during the bag changing process.
1) Welding fume, foundry
2) Food, pharmaceutical
3) Shot blasting
4) Tobacco, metal, painting
5) Energy
6) Woodworking
7) Cement production
8) Powder processing
9) Steel melting
10) Material handling
11) Primary metals, including steel-making
12) Metals fabrication: grinding, sawing, sanding, polishing
13) Papermaking
14) Mixing and blending options
15) Mining
16) Glass Plants
17) Battery Plants
18) Other areas.
