Industrial PoE Power Splitter 10 100 1000Mbps 802.3 Bt 95W Power Over Ethernet 5VDC Output
PoE Power Splitter Industrial 10 100 1000Mbps 802.3bt 95W Power Over Ethernet 5VDC Output
PoE Power Splitter Advantages

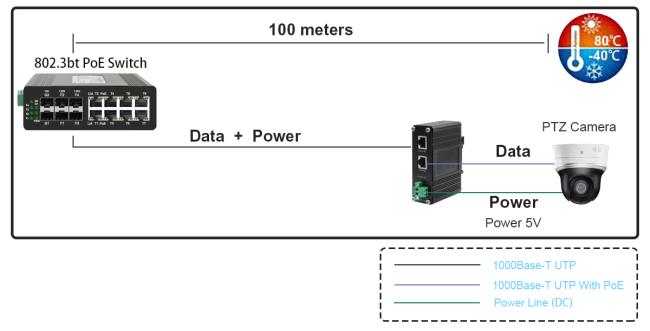

► Distance up to 100 meters
► Short-circuit protection for power output
► IP40 rugged metal housing and fanless
► Support DIN-Rail & Wall-mount installation
► Extensive LED indicators for PoE diagnostics
► Wide operating temperature -40 ~ 80°C
Technical Indexe
| Electrical and Mechanical | |
| Power Output: | 20W 5VDC (Terminal Block) |
| Power Consumption: | 25W Max. |
| LED Indicators: | |
| PWR: | 5VDC Power OUT |
| POE: | PoE Power IN |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Regulatory Approvals | |
| ISO9001 | |
| FCC part 15, Class A | |
| EN55022:2006+A1: 2007 Class A | |
| Surge Protection: | |
| RJ45: 1KV | |
| Power: 500W | |
| ESD: 4KV/8KV | |
Overview

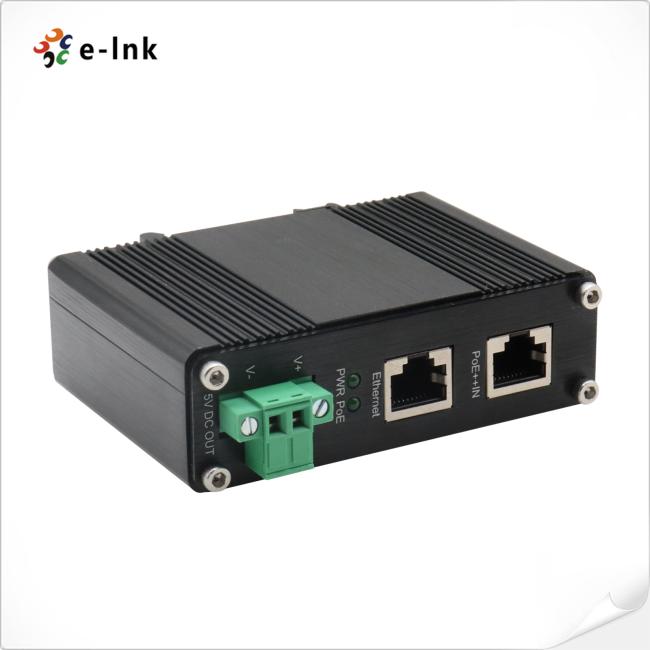

LNK-INS901-5V series is an Industrial Grade, Gigabit Ethernet, PoE Splitter, designed to deliver data, via RJ-45 Ethernet connector, and electrical power, via screw terminal block, to non-PoE devices. This device saves the high cost of running separate electrical service to edge devices.
Ordering Information
| Model | Description |
| LNK-INS901-5V | Industrial IEEE802.3bt Gigabit PoE Splitter Output Voltage 5VDC, maximum output of 20W at 5VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
