Industrial PoE Switch 10GBASE-X SFP+ Media Converter
Industrial PoE Switch 10GBASE-X SFP+ Media Converter
Industrial PoE Switch Advantages
► 100/1G/2.5G/5G/10G BASE-T RJ45 interface with auto MDI/MDI-X function, 10GBASE-X SFP+ slot interface
► Compliant with IEEE802.3af/at protocol
► Supports auto-negotiation 100Mbps, 1Gbps half/full duplex and 2.5/5/10Gbps full duplex mode
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature
Industrial PoE Switch Technical Indexes
| Ethernet | ||||
| PoE Standard | IEEE802.3af/at | |||
| Network Cables: |
10G/5G/2.5G/1G/100M BASE-T: 10G – Cat 6A/7 5G – Cat 6/6A/7 1G/2.5G – Cat 5e/6/6A/7 100M – Cat 5/5e/6/6A/7 Cat 5/5e/6/6A/7 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) 10GBASE-LR/SR/BX: 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m 9/125μm single-mode fiber optic cable, up to 80km |
|||
| Processing Type: | Store-and-Forward | |||
| Fabric: | 20Gbps | |||
| Interface | ||||
| Connector: | 1 x RJ45 | |||
| Optical Port: | 1 x SFP+ | |||
| Environmental | ||||
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) | |||
| Electrical and Mechanical | ||||
| DIP Switch | ||||
| 4-digit DIP switch function
|
DIP | Function | Settings | |
| SW 1 | Reserved | ON - Reserved | OFF - Reserved | |
| SW 2 | Reserved | ON - Reserved | OFF - Reserved | |
| SW 3 | Reserved | ON - Reserved | OFF - Reserved | |
| SW 4 | Reserved | ON - Reserved | OFF - Reserved | |
| Note: DIP Switch’s function can be customized based on client’s requirements. | ||||
| Dimensions (WxDxH): | 95 x 70 x 30 mm | |||
Overview

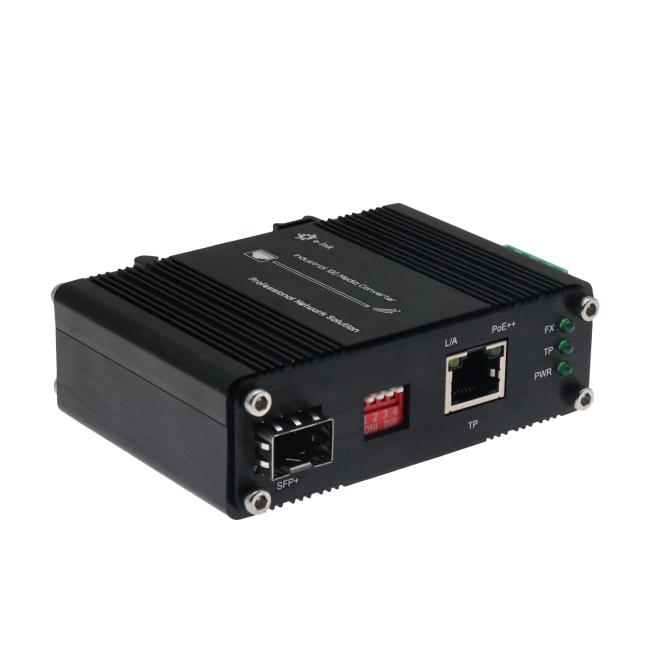

LNK-IMC10GP30-SFP+ is Industrial-grade 10G 802.3at PoE Media Converter providing non-blocking wire-speed performance and great flexibility for 10Gigabit Ethernet extension in harsh industrial environment. It is equipped with one 100Mbps/1Gbps/2.5Gbps/5Gbps/10GBASE-T RJ45 copper interface and one 10GBASE-X SFP+ fiber optic interface delivered in an IP40 rugged but compact-sized case with redundant power system.
Ordering Information
| Model | Description |
| LNK-IMC10GP30-SFP+ | Mini Industrial 10G/5G/2.5G/1G/100M 802.3at to 10GBASE-X SFP+ Media Converter |
| SFP Options | ► SFP+ option. Please select your SFP+ on our SFP+ Options Page (Industrial SFP). |
| ► SFP+ module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately. |
