OEM Mini Industrial Ethernet Media Converter 10BASE-T To 10BASE-FL ST Connector
OEM Mini Industrial 10BASE-T To 10BASE-FL Ethernet Media Converter ST Connector
Industrial Media Converter Advantages
► Complies with 802.3 10Base-T and 10Base-FL standards
► Extends network span from up to 2km(Multi mode)
► Interoperable with other 10Base media converters, 10Base, 10Base-T NICs, hubs or switches
► Provides LEDs for easy network monitoring
► Supporting Quality of Service (QoS), ensuring the transmission of VoIP packets
10M Fiber Media Converter Technical Indexes
|
Standards: |
IEEE 802.3 |
|
10 Base-T |
|
|
10 Base-FL |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3x Full duplex and flow control |
|
|
Wavelength: |
850nm |
|
Buffer Space: |
Built in 128Kb RAM for data buffer |
|
Flow Control: |
Full duplex: flow control; |
|
Cable Length: |
50/125um or 62.5/125um Multi-mode duplex fiber optic cable for 10Base-FL |
|
Transmission type: |
Base band |
|
Connection switch: |
2-position 10Base-T switch on RJ-45 side (hub or W/S) |
|
LED Indicators: |
|
|
PWR: |
Power Status |
|
ACT: |
Data LINK Status |
|
TP: |
Ethernet Status |
|
FL: |
Fiber LINK Status |

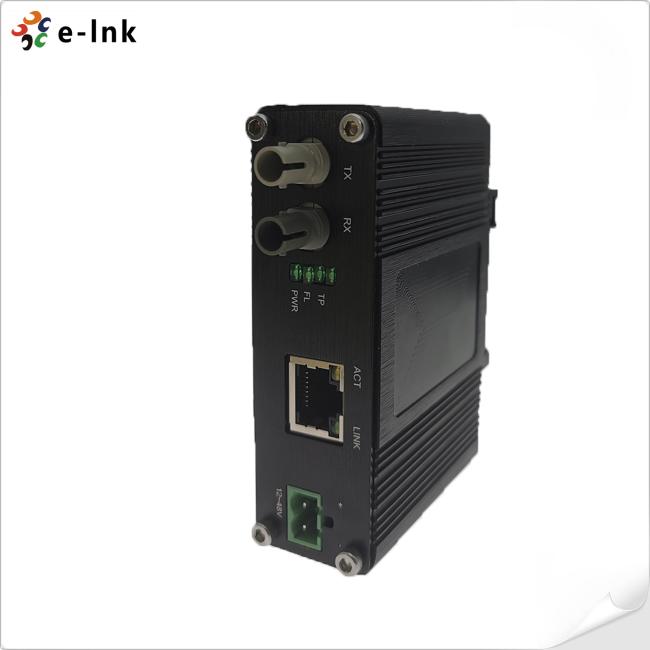

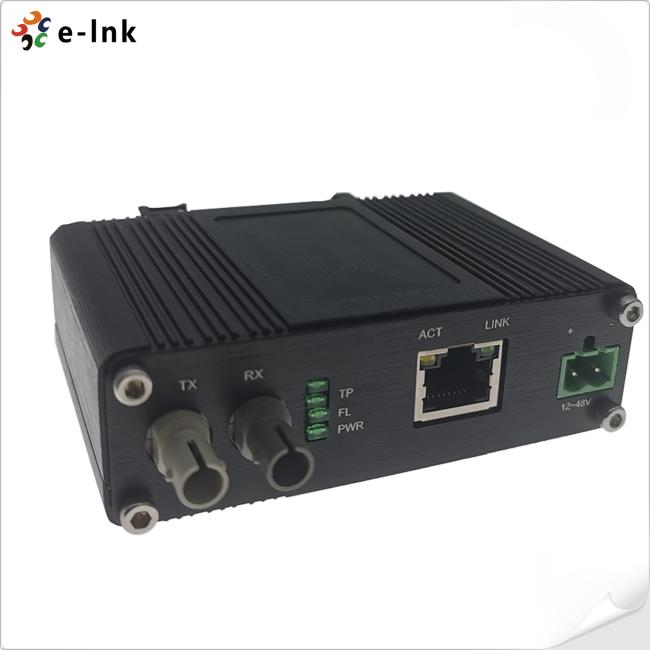

Fiber to Copper ST Media Converter Overview
E-link Mini Industrial 10Base-T Ethernet to 10Base-FL fiber optical media converter converts your existing 10Base-T Ethernet to a 10Base-FL network with single mode or multimode fiber optic cable up to 20,000 meters.
It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC10FST Series are easy to mount on a DIN rail or in distribution boxes.
Fiber Optic Ethernet Media Converter Ordering Information
|
Model |
Description |
|
LNK-IMC10FST-MM |
Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter, multi-mode, 2km, 850nm, ST |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |
