Commercial L2 Managed Fiber Switch 8 Port 10/100/1000T 802.3at PoE + 2 Port 100/1000X
Commercial L2 Managed 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X Fiber Switch
Commercial PoE Switch Advantages
►8-Port 10/100/1000BASE-T RJ45 copper with IEEE 802.3at/af Power over Ethernet Injector function
►2-Port 100/1000BASE-X mini-GBIC/SFP
►RJ45 console interface for basic management and setup
►Web smart management for easy application
L2 Managed 8-Port Ethernet Switch Technical Indexes
|
RJ45 port and speed |
8x10/100/1000Base-TX 802.3at PoE |
|
Fiber port and speed |
2x100/1000Base-FX SFP (Dual Mode, Auto Detection) |
|
Packet buffer |
4Mbits |
|
MAC address table |
8K |
|
Transmission mode |
Store and Forward (full/half duplex mode) |
|
Exchange property |
Delay time: < 7μs |
|
PoE Standard |
8x IEEE 802.3af /IEEE 802.3at PoE |
|
Power budget |
Max. PoE output power budget 30W |
|
Power |
Built-in power AC 100~240V 50/60Hz MAX Current 5.2A MAX Power 250W |
|
Protection grade |
IP30 |
|
Dimensions |
280mm x 180mm x 44.5mm (L x W x H) |
|
Installation mode |
Rack Mounting |
|
Weight |
2000g |
|
MTBF |
200,000 hours |
|
Defects Liability Period |
1 year warranty, lifetime technical support |
8RJ45 To 2SFP PoE Power Switch Overview

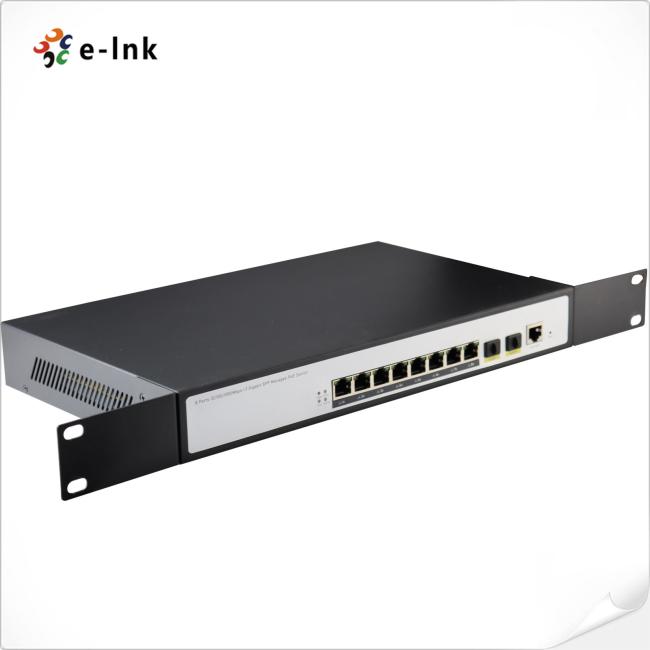

TS-M308GP-2SFP Layer 2 Managed Gigabit Switch provides 8 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+, and 2 extra 100/1000BASE-X SFP fiber slots. Each of the eight Gigabit ports provides 36 watts of power, with a total power budget of up to 250 watts for the different types of PoE applications being employed. It provides a quick, safe and cost-effective Power over Ethernet network solution to IP security surveillance for small businesses and enterprises.
Enterprise Gigabit PoE Switch Ordering Information
|
Model |
Description |
|
TS-M308GP-2SFP |
L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch, total power budget of up to 250 watts |
|
Mounting Options |
► Desktop or Rack Mounting Installation |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
