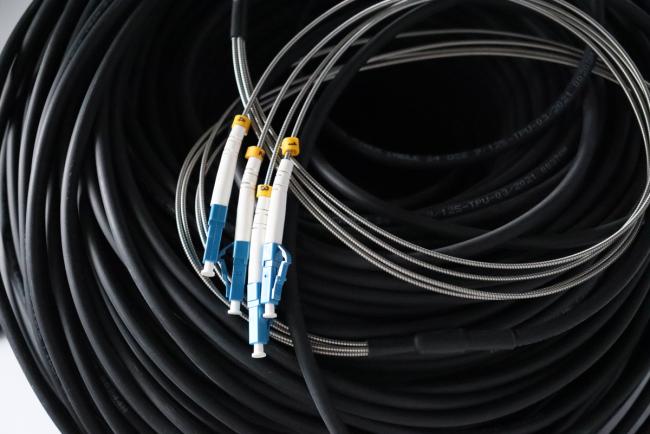

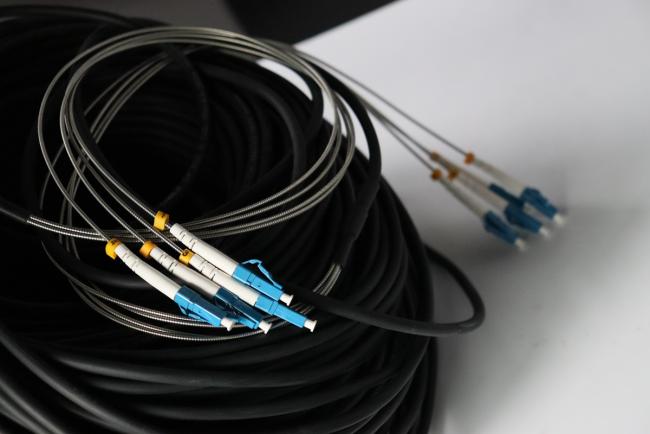

Outdoor Armored OS2 9/125μm 4 Core SM 50 Meters LC To LC Connector Fiber Optic Patch Cables
Armored OS2 9μm 125μm Fiber Optic Accessories 4 Core SM Patch Cable
Outdoor Armored OS2 9/125μm 4 Core 50 Meters LC To LC Connector SM Fiber Patch Cable
Outdoor Armored Cable Advantages
► Outdoor Armored Cable, 9/125, 4 Core, Single mode
► Ceramic connectors ensure low signal loss, and high reliability
► Low smoke, zero halogen and flame retardant sheath
► Adapt to harsh environments and man-made damage
OS2 4 Core Fiber Patch Cable Technical Indexes
| Buffered Fiber | ||
| Material | PVC | |
| Dimension | 850±50μm | |
| Armor Tube | ||
| Dimension | 2.8±0.1 mm | |
| Material | SUS 204 | |
| Strength Member | ||
| Material | Polyester yarn | |
| Jacket | ||
| Dimension | 5.0±0.2mm | |
| Material | LSZH | |
| Color | Black | |
| Mechanical and Environmental Characteristics | ||
| Items | Unit | Specifications |
| Crush(Long Term) | N/10cm | 300 |
| Crush(Short Term) | N/10cm | 1000 |
| Min. Bend Radius (Dynamic) | mm | 20D |
| Min. Bend Radius (Static) | mm | 10D |
Armored Fiber Patch Cable LC To LC Overview
As Fiber Optics continue to modify the face of high-speed interconnection technology, E-link’s 2-12Core Armored Fiber raises the bar yet again. With the incorporation of the 2-12Core’s light weight design and additional connector options, it is a perfect fit for any high-speed system that needs to factor durability into their communication equation.
Ruggedized Armored Fiber Cable Ordering Information
|
Model |
Description |
|
LNK-2OFC-LC-LC-50 |
50 Meters LC to LC Outdoor Armored 2-Core SM Fiber Patch Cable |
|
LNK-2OFC-LC-LC-100 |
100 Meters LC to LC Outdoor Armored 2-Core SM Fiber Patch Cable |
|
LNK-4OFC-LC-LC-50 |
50 Meters LC to LC Outdoor Armored 4-Core SM Fiber Patch Cable |
|
LNK-4OFC-LC-LC-100 |
100 Meters LC to LC Outdoor Armored 4-Core SM Fiber Patch Cable |
|
LNK-6OFC-LC-LC-50 |
50 Meters LC to LC Outdoor Armored 6-Core SM Fiber Patch Cable |
|
LNK-6OFC-LC-LC-100 |
100 Meters LC to LC Outdoor Armored 6-Core SM Fiber Patch Cable |
|
LNK-8OFC-LC-LC-50 |
50 Meters LC to LC Outdoor Armored 8-Core SM Fiber Patch Cable |
|
LNK-8OFC-LC-LC-100 |
100 Meters LC to LC Outdoor Armored 8-Core SM Fiber Patch Cable |
|
LNK-12OFC-LC-LC-50 |
50 Meters LC to LC Outdoor Armored 12-Core SM Fiber Patch Cable |
|
LNK-12OFC-LC-LC-100 |
100 Meters LC to LC Outdoor Armored 12-Core SM Fiber Patch Cable |
