Industrial DC48V 4 Port PoE Switch SFP 250m Transmission Distance
Industrial DC48V 4 Port PoE Switch SFP 250m Transmission Distance
Industrial 4-Port 10 100 1000BASE-T PoE To 1-Port 1000BASE-X SFP 250m PoE Switch
4-Port 250m PoE Switch Advantages
► Transmission distance 250m, it can be flexible installation for wireless AP and surveillance project
► It will give the speed of 10Mbps at 250meter when connect IP cameras

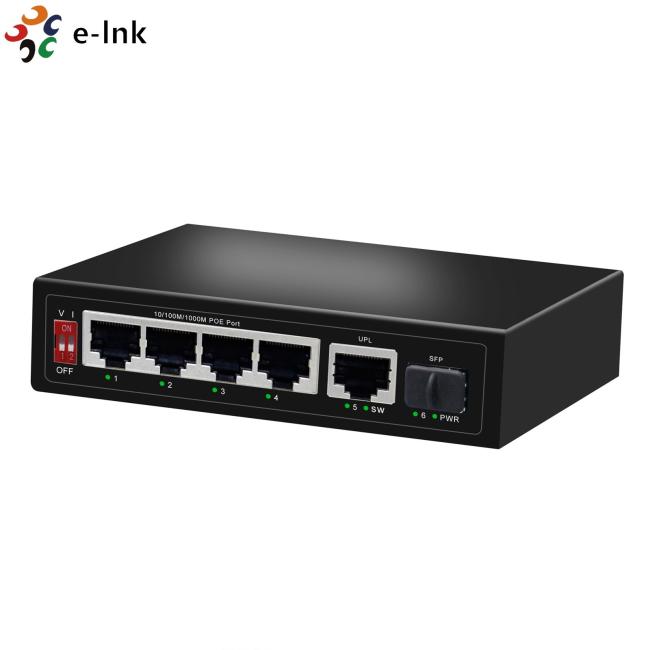

► 4*10/100/1000Base-TX POE port and 1 Uplink 1000M Ethernet slot+1 Uplink Gigabit SFP
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Compatible with both IEEE802.3at(30W) and IEEE802.3af (15.4W)
Unmanaged Fiber Network Switch Technical Indexes
|
Interface |
4 x 10/100/1000M copper RJ-45 ports, 1 x 1000M RJ45 port + 1 Uplink Gigabit SFP port |
|
PoE Specification |
PoE Standard: Supports both IEEE802.3af and IEEE802.3at |
|
Single PoE Port Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) |
|
|
PoE port Auto detect AF/AT devices |
|
|
PoE Port Output Voltage: DC48V |
|
|
Power Pin Assignment:1/2+;3/6- |
|
|
Fiber Media |
Multi-mode: 1310nm, 2Km Single-mode: 1310nm, 20Km; 1550nm, 40/60/80Km |
|
Power Supply |
Input Voltage: DC48V (48～55V) Type of input: 4 pins terminal block(redundancy V1+V1-,V2+V2-) No-load consumption: MAX 5W@ DC52V0.1A Full-load consumption: MAX 65W@ DC52V1.25A (802.3af) Full-load consumption: MAX 104W@ DC52V2A (802.3af+) Full-load consumption: MAX 130W@ DC52V2.5A (802.3at) |
Din Rail 4-port PoE To 1-port SFP Fiber Ethernet Switch Overview
LNK-GYT411GP-SFP Series is 250m Industrial PoE Switch with 4-port 10/100/1000Base-TX, 1-port 1000BASE-X SFP and 1-port 1000BASE-T uplink. The Switch provides 4 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The product fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. Inserted static, surge protection circuit can improve product stability.
Copper to Fiber 802.3at PoE Switch Ordering Information
|
Model |
Description |
|
LNK-GYT411GP-SFP |
4-Port 10/100/1000Base-T PoE(up to 250m) + 1-Port 1000Base-T + 1-Port 1000Base-X SFP Ethernet Switch |
|
Mounting Options |

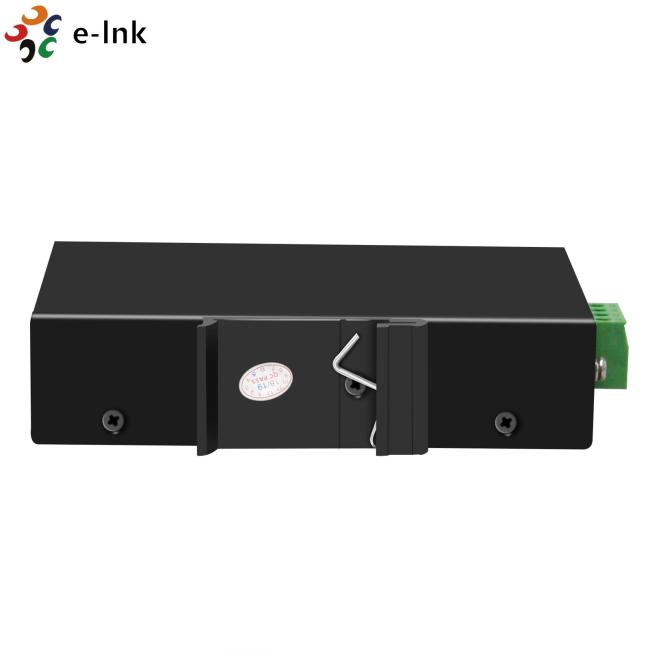

► Default DIN-Rail Bracket installed |
|
Power Options |
►120W/2.5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
