10/100/1000Mbps 802.3bt PoE Power Splitter Output Voltage 19VDC

Price Negotiable

Price: $6.9-79

MOQ: 1 pcs

Delivery Time: 5-12 working days

Brand: E-link

Product Description

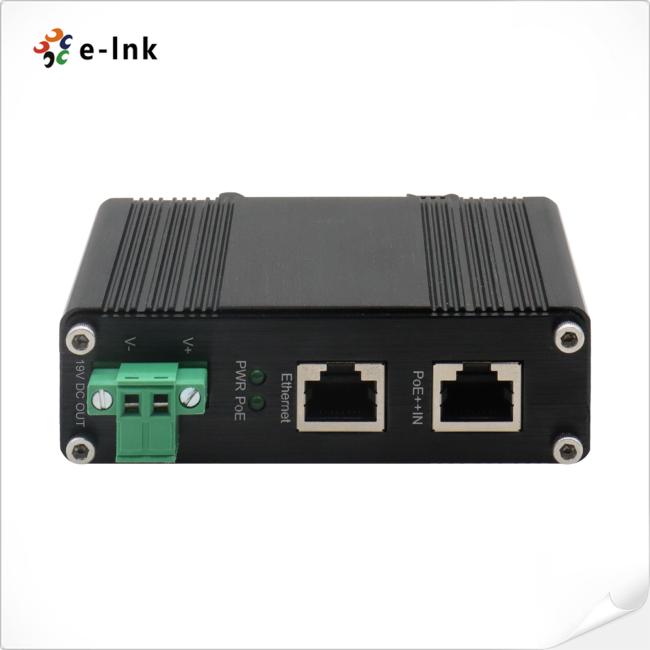

Industrial 10/100/1000Mbps 802.3bt PoE++ Splitter Output Voltage 19VDC

PoE Power Splitter Advantages

► Short-circuit protection for power output

► IP40 rugged metal housing and fanless

► Support DIN-Rail & Wall-mount installation

► Extensive LED indicators for PoE diagnostics

► Wide operating temperature -40 ~ 80°C

Technical Indexes

Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Power Output:	36W 19VDC (Terminal Block)
Power Consumption:	41W Max.
LED Indicators:
PWR:	19VDC Power OUT
POE:	PoE Power IN
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500W
ESD: 4KV/8KV

Overview

LNK-INS901-19V series is an Industrial Grade, Gigabit Ethernet, PoE Splitter, designed to deliver data, via RJ-45 Ethernet connector, and electrical power, via screw terminal block, to non-PoE devices. This device saves the high cost of running separate electrical service to edge devices.

Ordering Information

Model	Description
LNK-INS901-19V	Industrial IEEE802.3bt Gigabit PoE Splitter Output Voltage 19VDC, maximum output of 36W at 19VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
