Product Description
POTS FXO FXS Fiber Optic Mux Cwdm 8 Channel 20 Kilometers Transmission

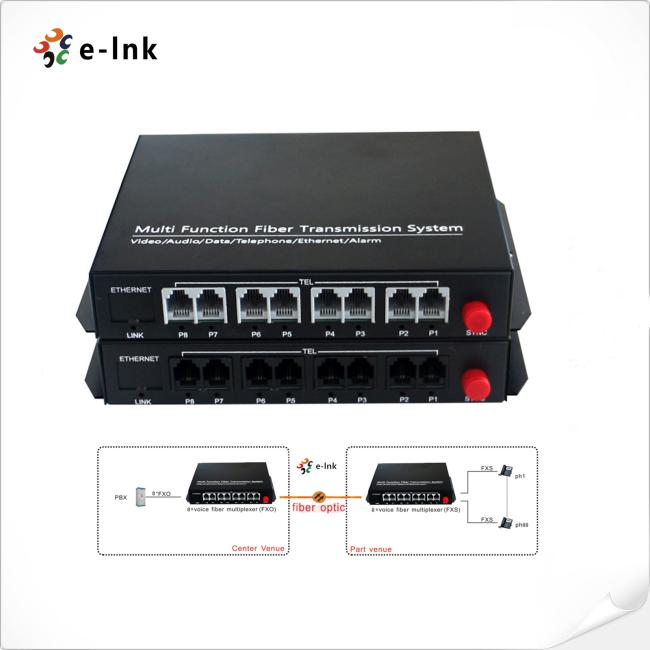

8Ch POTS(FXO/FXS)Telephone over Fiber Mux
Accessories Advantages:
8 channel support voice access, Support Caller ID and Fax
Support FXO / FXS ordinary telephone
Industrial design, modular design
Technical Indexes
| Telephone Ports | 8 telephone port RJ11 port |
| FXS | Ringing voltage: 75V, ringing frequency: 25HZ |
| FXO | Second line input impedance:600Ω (hook), return loss: 40db, ring detection voltage:35V |
| Connection |
Point to point, telephone to switch |
| Code | PCM |
| Fiber | FC/UPC |
| Transmission | 20 kilometers |
| Environmental | -40°～ 45°C |
| Total power |
DC12V 3A |
Overview
E-link 8 channel POTS (Plain Old Telephone System) phone lines over fiber converter / extender.
Ordering Information
| Model | Description |
| LNK-PCM08 | Analog Telephone to F/O Converter: 8-Ch Telephone lines (FXO & FXS), FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs |
| LNK-PCM08-E | Analog Telephone to F/O Converter: 8-Ch Telephone lines (FXO & FXS) + 1-Ch 100M Ethernet, FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs |
