Outdoor 95W Gigabit PoE Injector Adapter With 6KV Surge Protection

Price Negotiable

Price: $4.9-299

MOQ: 1 pcs

Delivery Time: 5-12 working days

Brand: E-link

Product Description

Outdoor 95W Gigabit PoE Injector Adapter With 6KV Surge Protection

Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection

Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection Advantages

► Protection level: IP67

► 6KV(10/700us) surge protection on LAN, PoE ports

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port(Data + Power)

► Support 95W LTPoE++ Power Sourcing Equipment

► Supports Wall-mount installation

► Environmentally hardened -40°C to 80°C
(-40°F to 176°F) operating temperature

Technical Indexes

Parameter	Specifications
Standard	IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE802.3ab 1000Base-T Gigabit Ethernet Support terminal equipment with IEEE802.3af/at/bt, PoE++ RoHS Compliance WEEE Compliance Protection Level: IP67, IEC60529, NEMA 250
Input & Output	Input : 48~57VDC Output: IEEE802.3bt 95W Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-) Data Speed: 10/100/1000Mbps
Working Environment	Operating Temperature: -40℃ to 80℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters
AC Surge Protection	Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV
PoE Surge Protection	Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV
Mechanical Characteristics	Case: Metal
	Color: Gray
	Mounting: Pole-mounted
	IP Rated: IP67
	Size (LxWxH): 260mm X 210mm X 80mm
	Weight: 1.5KG
Safety Approvals	CE, FCC, IP67
EMI	FCC CFR47 Part 15, EN55024, EN55032
EMS	IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz~2GHz) IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM IEC61000-4-6(CS) 10V(150kHz~80MHz)
Immunity	IEC60068-2-6(Vibration) IEC60068-2-27(Impact) IEC60068-2-32(Free Fall)

Overview

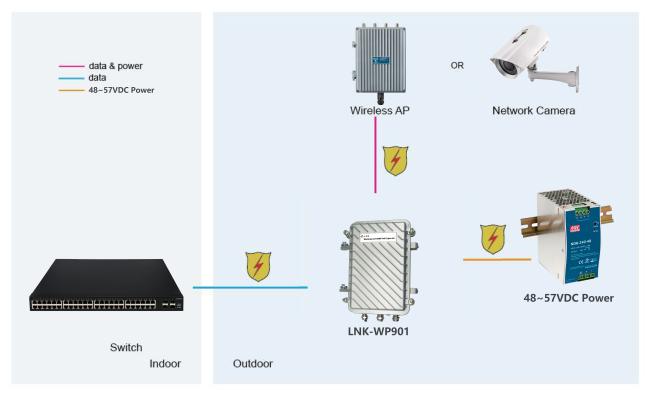

LNK-WP901 provides 95W PoE power for remote PDs over 4 pairs output with 6KV (10/700us) surge protection, fully compliant solution for outdoor installations, guaranteeing 30 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless LAN access points, security network cameras and other IP terminals to receive power, a long with data, over standard Ethernet cables, leaving network infrastructure completely unaltered.

Ordering Information

Model	Description
LNK-WP901	Outdoor Waterproof Industrial 95W Gigabit PoE Injector with Surge Protection
