Industrial L2+ 24-Port 10 / 100 / 1000T + 4-Port 1000X SFP Managed Ethernet Switch
10T 100T 1000T 24 Port Fiber Optic Switch With IP40 Aluminum Case
Industrial L2+ 24-Port 10/100/1000T + 4-Port 1000X SFP Managed Ethernet Switch
Industrial Managed SFP Ethernet Switch Advantages
► Support 24x10/100/1000Base-T + 4x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► 10K Bytes Jumbo Frame
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Supports DIN-Rail installation
Overview

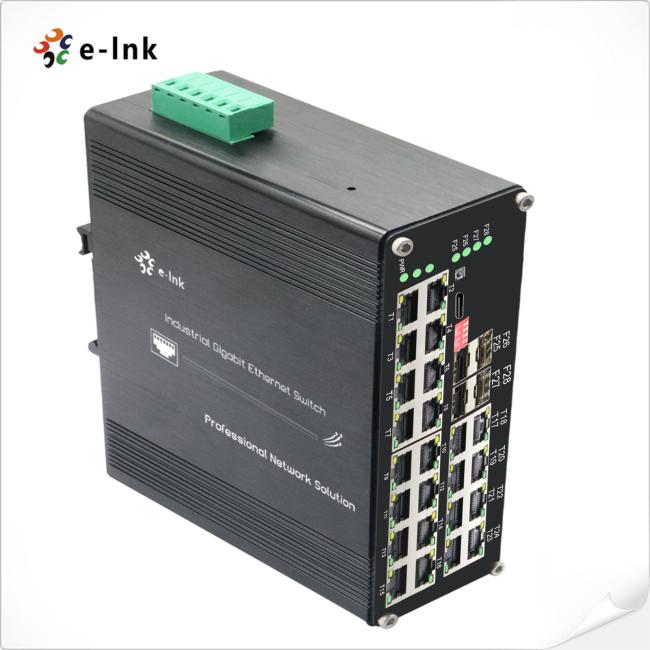

ETH-DIMC2424M Series is the L2+ managed 24-port 10/100/1000Base-T + 4-port 1000Base-X SFP
hardened Ethernet switch. The Switch has 24 TP ports and 4 fiber ports. The TP (RJ45) supports 10/100
/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port
supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the
product is a great choice for integrating networks consisting of network devices such as IP cameras and
wireless access points between remote locations.
Industrial Managed SFP Ethernet Switch Technical Pictures
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX | |
| IEEE802.3ab 1000BASE-T | |
| IEEE802.3z 1000BASE-X | |
| IEEE802.3p QoS | |
| IEEE802.1d Spanning Tree | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 12M bits |
| Processing Type: | Store-and-Forward |
| Backplane bandwidth | 110Gbps |
| Max Packet Length: | 10K Bytes Jumbo Frame |
| Address Table Size: | 8K MAC Addresses |
| Interface | |
| Connector: | 24 x RJ45 |
| RS485: | 1 x RS485 (Optional) |
| Optical Port: | 4 x 1000Base-X SFP |
| USB-C: | 1 x USB-C (for Management) |
| RS485 Serial Interface (Optional) | |
| Physical interface | Industrial standard 3-pin screw terminal |
| Data type | 1Ch RS485 Bi-Direction |
| RS-485 signals | Data+, Data-, GND |
| Serial port line distance (copper) | 1000 meters |
| Baud rate | 0 ~ 800kbps |

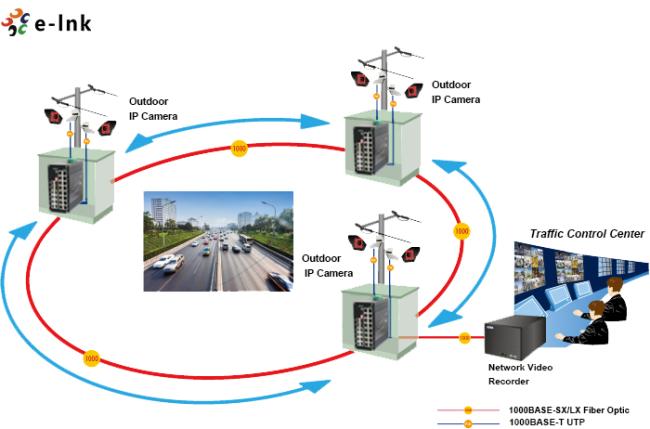

Application
Ordering Information
| Model | Description |
| ETH-DIMC2424M | Industrial L2+ 24-Port 10/100/1000T + 4-Port 1000X SFP Managed Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
