Wavelength 1260nm 1650nm Bare Fiber PLC Splitter Low Insertion Loss
Wavelength 1260nm 1650nm Bare Fiber PLC Splitter Low Insertion Loss

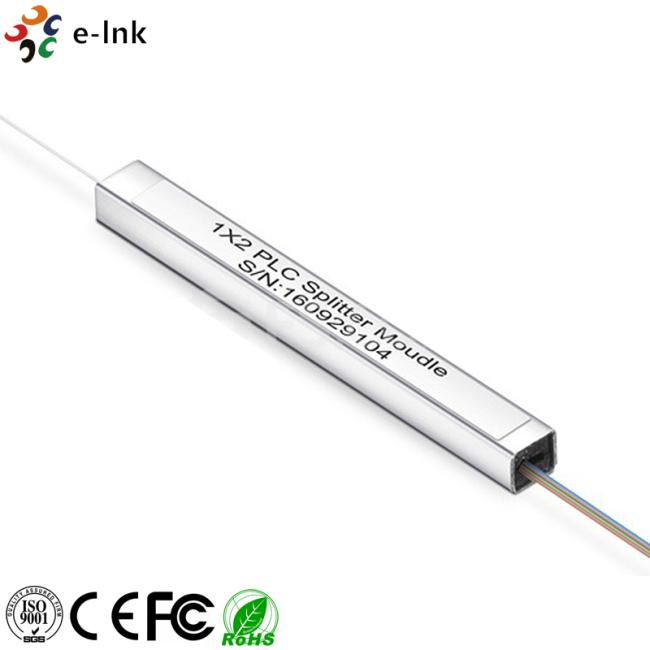

Bare Fiber PLC Splitter
Advantages
Ø Low Insertion Loss (IL)
Ø High isolation
Ø Low Polarization Dependent Loss (PDL)
Ø Compact design
Ø Wide operating wavelength range
Ø Good channel-to-channel uniformity
Ø High reliability and high stability
Ø Telcordia GR-1209-CORE-2001 compliant
Ø Telcordia GR-1221-CORE-1999 compliant
Ø YD/T-1272Q compliant
Ø Q/CT-2295 compliant
Ø RoHS-6 compliant (lead free)
Technical Indexes
| Parameters | 1×N Bare Fiber PLC Splitters | |||||
| Operating Wavelength (nm) | 1260～1650 | |||||
| Port Configuration | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Max Insertion Loss (dB) (P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/14.7 | 16.5/16.9 | 20.5/21.0 |
| Max Loss Uniformity (dB) | 0.6 | 0.7 | 0.8 | 1.2 | 1.5 | 2.0 |
| Max PDL (dB) | 0.2 | 0.25 | 0.35 | |||
| Min Return Loss (dB) | 55 | |||||
| Min Directivity (dB) | 55 | |||||
| Max Wavelength Dependent Loss (dB) | 0.5 | 0.8 | 1.0 | |||
| Max Temperature Stability (dB) | 0.5 | |||||
| Operating Temperature (℃) | -5～75 | |||||
| Storage Temperature (℃) | -40～85 | |||||
| Device Dimension L×W×H (mm) | 40×4×4 | 50x4x4 | 50x7x4 | 60x12x4 | ||
| Parameters | 2×N Bare Fiber PLC Splitters | |||||||
| Operating Wavelength (nm) | 1260～1650 | |||||||
| Port Configuration | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | |||
| Max Insertion Loss (dB) | 4.2 | 7.6 | 11.0 | 14.4 | 17.5 | |||
| Max Loss Uniformity (dB) | 0.9 | 1.0 | 1.2 | 1.5 | 1.8 | |||
| Max PDL (dB) | 0.3 | 0.35 | ||||||
| Min Return Loss (dB) | 55 | |||||||
| Min Directivity (dB) | 55 | |||||||
| Max Wavelength Dependent Loss (dB) | 0.5 | 0.8 | ||||||
| Max Temperature Stability (dB) | 0.5 | |||||||
| Operating Temperature (℃) | -5～75 | |||||||
| Storage Temperature (℃) | -40～85 | |||||||
| Device Dimension L×W×H (mm) | 40×4×4 | 50x4x4 | 50x7x4 | 60x7x4 | ||||
Overview
The E-link bare fiber PLC (Planar Lightwave Circuit) splitter is a type of optical power management device with bare fiber package fabricated using silica optical waveguide technology. It is widely used in PON/ODN networks to realize optical signal power splitting with 1xN or 2xN splitting ratio. E-link provides a series of customized bare fiber PLC splitters to meet different requirements on port configuration, input fiber type, input fiber length, output fiber type, output fiber length, input connector, and output connector.
