L2+ 8-Port 10/100/1000T + 2-Port 1000X SFP Industrial Managed Switch
Din Rail Mount Managed 8 Port 10/100/1000T Ethernet Switch 48VDC Output
Industrial L2+ 8-Port 10/100/1000T To 2-Port 1000X SFP Fiber Managed Network Switch
Fiber Managed Ethernet Switch Advantages
► Support 8x10/100/1000Base-T + 2x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► 9K Bytes Jumbo Frame
► IP40 Aluminum Case
Ethernet Switch 8 port Gigabit Overview

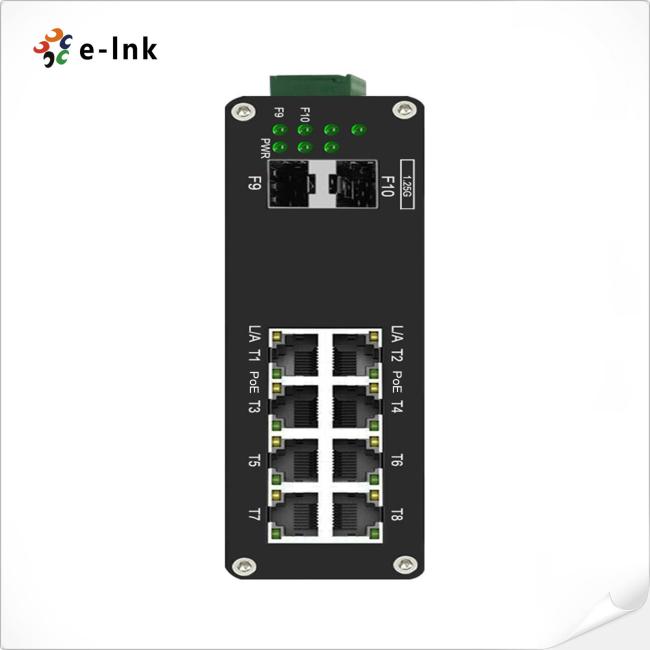

ETH-IMC208M series is the L2+ managed 8-port 10/100/1000Base-T + 2-port 1000Base-X SFP hardened Ethernet switch. The Switch has 8 TP ports and 2 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber.
Managed Switch 8 Port 10/100/1000Mbps RJ45 Technical Indexes
| Connector: | 8 x RJ45 | |||
| RS485: | 1 x RS485 (Optional) | |||
| Optical Port: | 2 x 1000Base-X SFP | |||
| USB-C: | 1 x USB-C (for Management) | |||
| RS485 Serial Interface (Optional) | ||||
| Physical interface | Industrial standard 3-pin screw terminal | |||
| Data type | 1Ch RS485 Bi-Direction | |||
| RS-485 signals | Data+, Data-, GND | |||
| Environmental | ||||
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) | |||
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) | |||
| Relative Humidity: | 5% to 95% non-condensing | |||
| MTBF | > 200,000 hrs | |||
| Electrical and Mechanical | ||||
| Input Power: | 12~48VDC, Redundant Power (6-pin Terminal Block) | |||
| Power Consumption: | 8W Max | |||

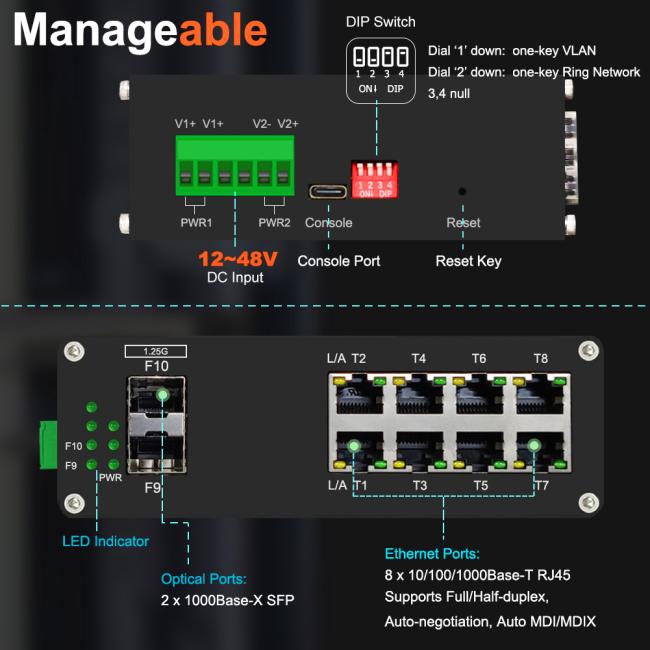

| DIP Switch | ||||
| 4-digit DIP switch function | DIP | Function | Settings | |
| SW 1 | VLAN | ON - Enabled | OFF - Disabled | |
| SW 2 | Ring Management | ON - Enabled | OFF - Disabled | |
| SW 3 | Reserved | ON - Reserved | OFF - Reserved | |
| SW 4 | Reserved | ON - Reserved | OFF - Reserved | |
Din Rail 8 Port RJ45 To 2 Port SFP Managed Ethernet Switch Ordering Information
|
Model |
Description |
|
ETH-IMC208M |
Industrial Managed Ethernet Switch L2+ 8-Port 10/100/1000T + 2-Port 1000X SFP |
|
SFP Options |
SFP option. Please select your SFP on our SFP Options Page |
|
SFP module is to be purchased separately. |
|
|
Mounting Options |

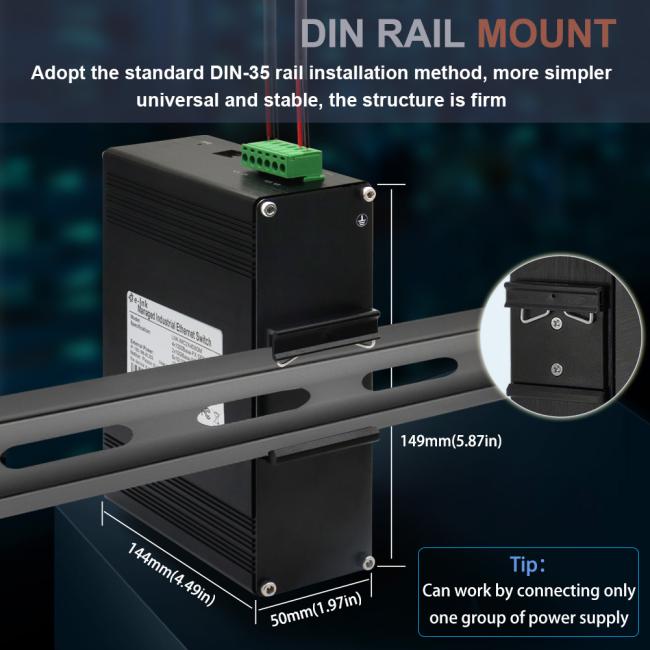

Default DIN-Rail Bracket installed |
|
Power Options |
DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
Power Supply is to be purchased separately. |
