Protocols

8.5G Fiber Channel
SONET OC-192, SDH STM-64 (9.95Gbps)
10G WAN (10Gbps)
10G LAN (10.31Gbps)
OTN OTU-2 (G.709) (10.70Gbps)
10G LAN with 255/237 FEC coding (11.09Gbps)
10G Fiber Channel (11.32Gbps)
10G POS

Operating Temperature

-40°C to 80°C (-40°F to 176°F)

Network Cables

Twisted-pair
10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m
100BASE-TX: 2-pair UTP Cat. 5, up to 100m
1000BASE-T: 4-pair STP Cat 5 up to 100m
Fiber-optic Cable
1000BASE-SX:
50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km.
1000BASE-LX:
9/125μm single-mode cable, providing long distance for 10/20/40/80/120km (vary on SFP module)

Input Power

12~48VDC, Redundant Power (6-pin Terminal Block)

Power Consumption

8W Max

Dimensions (WxDxH)

95 x 70 x 30 mm

Weight

0.25Kg

Casing

Aluminum Case

Mounting Options:

DIN-Rail mount

Model

Description

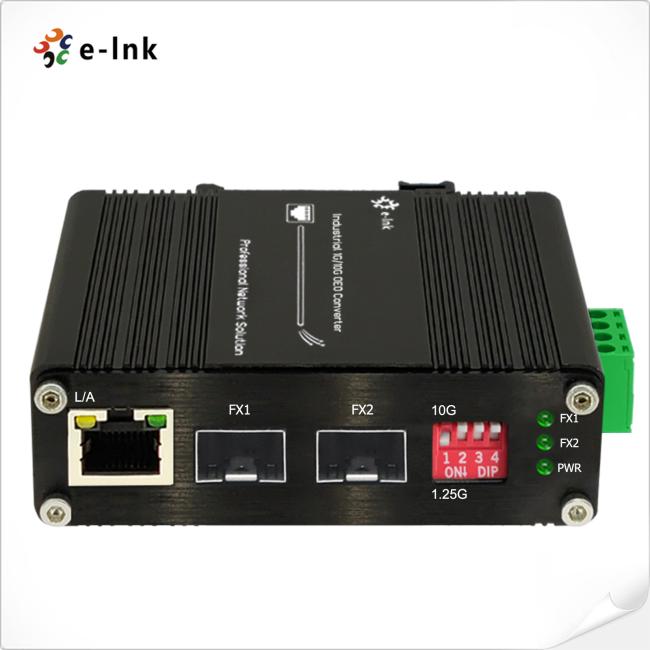

ETH-IMC2402-OEO

Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed

Power Options

► DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.
