Managed Industrial PoE Switch 8-Port 10/100/1000T 802.3at + 4-Port 1000X SFP Fiber
Managed Industrial PoE Switch 8-Port 10/100/1000T 802.3at + 4-Port 1000X SFP Fiber
8-Port 10/100/1000M Managed PoE Switch Advantages
► Support 8x10/100/1000Base-T 802.3at + 4x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
Managed PoE Switch 8-port Gigabit Overview

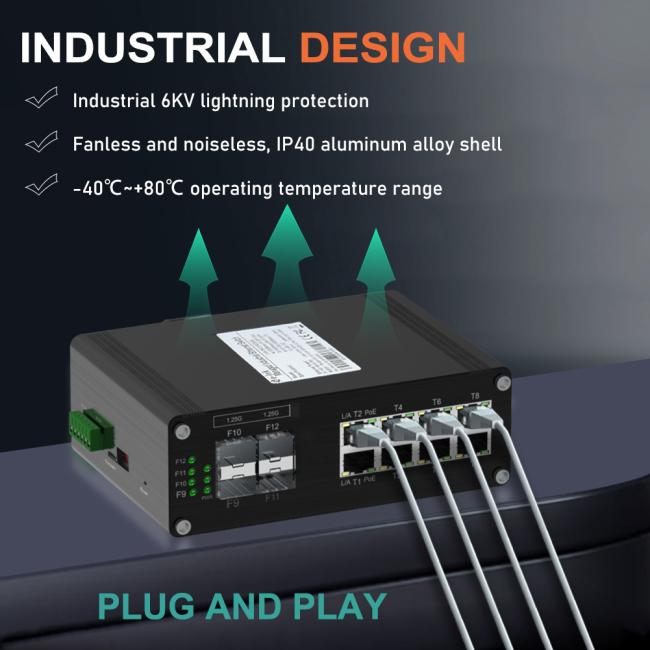

ETH-IMC408MP Series is the L2+ managed 8-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP hardened Ethernet switch. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
8-port Copper to 4-port Managed Switch Technical Indexes
|
Interface |
||||
|
Connector: |
8 x RJ45 |
|||
|
RS485: |
1 x RS485 (Optional) |
|||
|
Optical Port: |
4 x 1000Base-X SFP |
|||
|
USB-C: |
1 x USB-C (for Management) |
|||
|
RS485 Serial Interface (Optional) |
||||
|
Data type |
1Ch RS485 Bi-Direction |
|||
|
RS-485 signals |
Data +, Data-, GND |
|||
|
PoE (Power over Ethernet) |
||||
|
Standard: |
IEEE 802.3at Power over Ethernet Plus |
|||
|
IEEE 802.3af Power over Ethernet |
||||
|
Port: |
8 x RJ45 |
|||
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|||
|
PoE Budget: |
Up to 240-watt PoE budget |
|||
|
Electrical and Mechanical |
||||
|
Input Power: |
48~57VDC, Redundant Power (6-pin Terminal Block) |
|||
|
Power Consumption: |
8W Max. (PoE in Use<240W) |
|||
|
LED Indicators: |
||||
|
PWR |
Power Status |
|||
|
Ethernet (Per Port) |
Link/Activity |
|||
|
PoE |
PoE Status |
|||
|
Fiber: |
Gigabit SFP Port: F9~F12 |
|||
|
Dimensions (WxDxH): |
149 x 114 x 50 mm |
|||
|
Weight: |
0.55Kg |
|||
|
Casing: |
Aluminum Case |
|||
|
Mounting Options: |
DIN-Rail mount |
|||
8 Port Managed PoE Network Switch Ordering Information
|
Model |
Description |
|
ETH-IMC408MP |
Industrial L2+ 8-Port 10/100/1000T 802.3at + 4-Port 1000X SFP Managed Ethernet Switch |
|
SFP Options |
SFP option. Please select your SFP on our SFP Options Page |
|
SFP module is to be purchased separately. |
|
|
Power Options |
DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
Power Supply is to be purchased separately. |
