4 Channels 3G SDI To Optical Fiber Converter With Tally And RS485 Single Mode 20KM
3G-SDI Fiber Extender Advantages
► 4 channel 3G/HD-SDI video transmission over optic fiber/s
► Directly compatible with 3G/HD-SDI camera systems and support 4Ch Loop output
► Long transmission up to 20 km (12.5miles) (Other distance Optional)
► Support 1Ch backward RS485 and 4Ch Tally
SDI Video over Fiber Converter Technical Indexes
|
SDI Input |
Input number: 4 |
|
Reflection loss: >15DB |
|
|
Equilibrium: 0-150m @3Gb/s |
|
|
Connector: BNC |
|
|
Optics |
Channel: 1 |
|
Type: single-mode |
|
|
Transmission distance: 20km (Other distance Optional) |
|
|
Connector: FC/UPC (SC, LC, ST optional) |
|
|
SDI Output |
Output number:4 |
|
Connector: 75Ω BNC |
|
|
Data |
1Ch RS-485 (full/half duplex) and support NRZ, RZI and Manchester |
|
Max. 57600bps for RS485 |
|
|
4Ch Tally: A, B , C, D |
|
|
Power and environmental indication |
Operating temperature: -10℃～＋55℃ |
|
Power Input: 1A@12VDC |
|
|
SDI video format supports |
625/25PAL; 525/29.97NTSC; 525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94; |

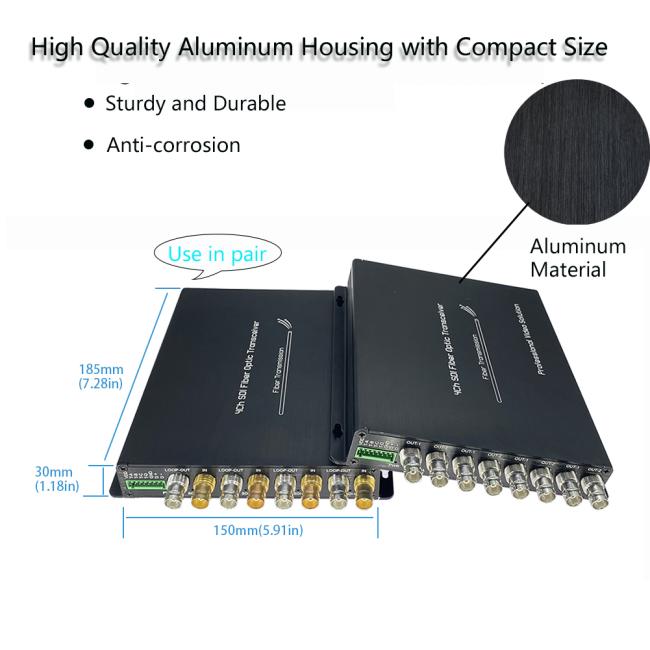

3G SDI Fiber Converter with Tally & RS485 Overview

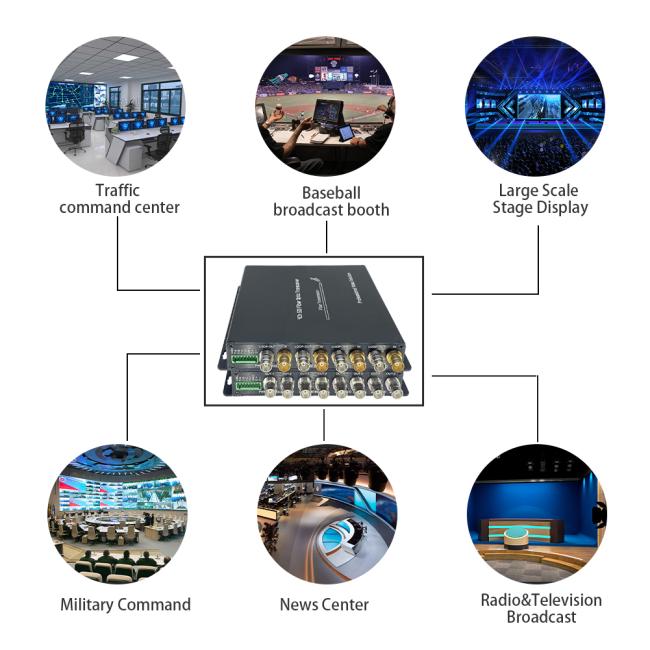

LNK-3GSDI-4V1DT Series supports 4-channel HD/3G-SDI standard high-definition video signal and RS485 and Tally signal transmitted via single fiber optical cable. E-link 3G-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G-SDI signal. E-link 3G-SDI Fiber Converters can transmit 4-Ch 3G-SDI Video signal through a single optical fiber, and it support Loop output, 4Ch Tally and backwards RS485. The video quality is non-compressed broadcast level. It’s widely used in broadcast field.
4-Channels 3G SDI Fiber Transmitter Receiver Ordering Information
|
LNK-HDSDI-4V1D4T |
4-Ch HD-SDI Video with Loop output + 1Ch backward RS485 + 4Ch Tally, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs |
|
LNK-3GSDI-4V1D4T |
4-Ch 3G-SDI Video with Loop output + backward RS485 + 4Ch Tally, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs |
