Din Rail Mini Ethernet Switch 4 Port 10/100/1000T + 1-Port 100/1000X SFP
Din Rail Mini Ethernet Switch 4 Port 10/100/1000T + 1-Port 100/1000X SFP
Mini Ethernet Switch Industrial 4 Port RJ45

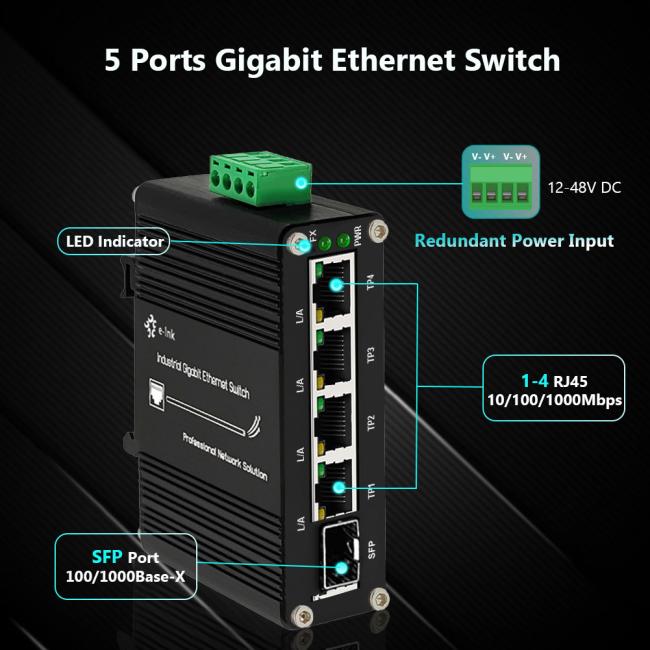

4-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Din Rail Ethernet Switch
Din Rail 4 Port Ethernet Switch Advantages
► 100/1000BASE-X SFP slots for SFP type auto detection
► 4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
► 12~48VDC wide range power input
► Supports DIN-Rail and Wall-mount installation
► -40°C to 80°C (-40°F to 176°F) operating temperature.
Mini Industrial Fiber Ethernet Switch Overview

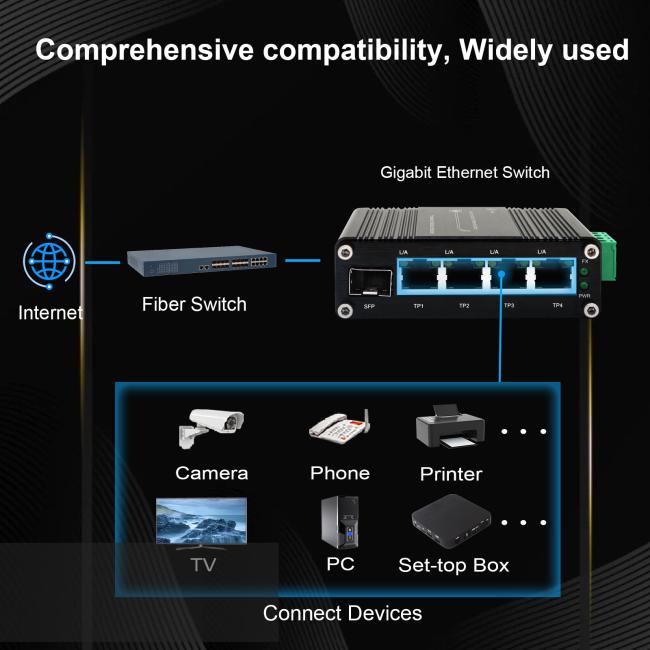

LNK-IMC104G-SFP Series is a Mini Industrial 4-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
4 Port Gigabit Ethernet Switch Technical Indexes
|
Interface |
|
|
Connector: |
4 x RJ45 |
|
Optical Port: |
1 x SFP 1000Base-X or 100Base-FX (auto detection) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC (Terminal Block) |
|
Power Consumption: |
<6W |
|
Dimensions (WxDxH): |
95 x 70x 29mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
LED Indicators: |
|
|
PWR: |
Power |
|
L/A: |
Link/Activity |
|
SPD |
Data Rate |
4 Port Gigabit Din Rail Ethernet Switch Ordering Information
|
Model |
Description |
|
LNK-IMC104G-SFP |
Mini Industrial 4-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately. |
