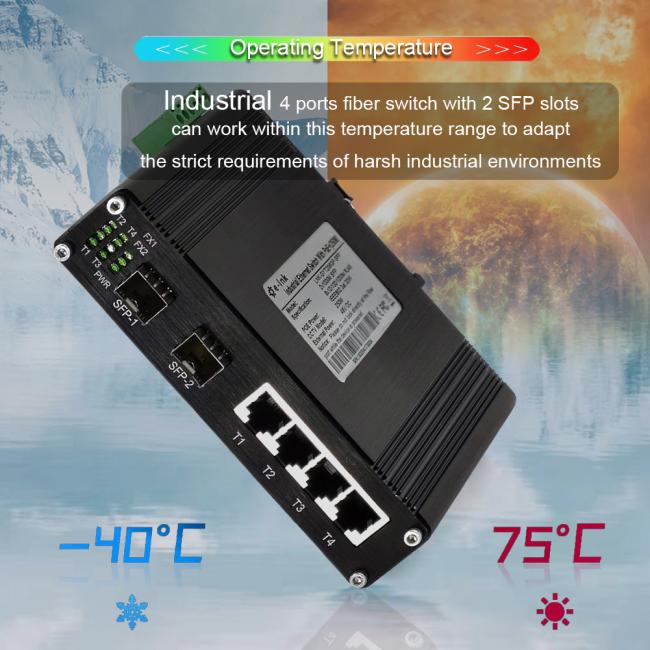

Unmanaged Industrial 4 Port 802.3at Din Rail PoE Switch
4 Port 10/100/1000T 802.3at PoE To 2 Port 1000Base-X Gigabit SFP Fiber
4 Port 802.3at PoE Switch 30W Advantages
► 4 10/100/1000Base-TX + 2 1000Base-X
► Supports IEEE 802.3at PoE+ (30W per port)
► SFP, SC, FC, ST Optional
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs
Unmanaged PoE Switch 4 Port Gigabit 802.3at Overview

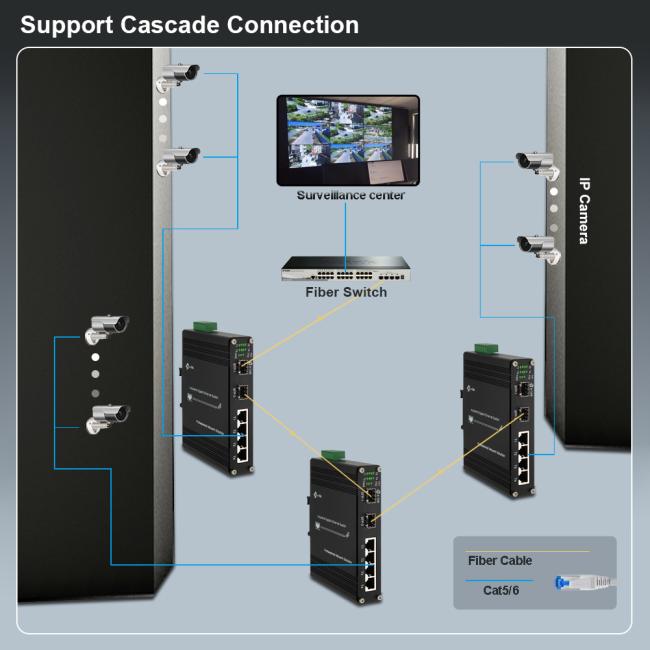

LNK-IMC204GP is a 4 ports 10/100/1000Base-TX + 2 port 1000Base-FX Hardened PoE switch. The Switch provides 4 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 1000Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
4 Port 1000Mbps PoE Switch Technical Indexes
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX/FX |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3z 1000BASE-X |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3af Power over Ethernet |
|
|
IEEE802.3at Power over Ethernet |
|
|
Interface |
|
|
Connector: |
4 x RJ45 |
|
Optical Port: |
2 x 1000Base-FX (SFP, SC, FC, ST Optional) |
|
Electrical and Mechanical |
|
|
Input Power: |
48~57VDC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
132W Max. (PoE in use) |
|
5W Max. (PoE not in use) |
|
|
Standard: |
IEEE802.3af/at |
|
PoE: |
|
|
Port: |
RJ45 Port 1 ~ Port 4 |
|
Max. Power per Port: |
30W Max per port (Alternative B Mode) |
|
Dimensions (WxDxH): |
150 x 115 x 50 mm |
|
Weight: |
0.6Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
4 Port PoE to 2 Port SFP Industrial Fiber Ethernet Switch Ordering Information
|
Model |
Description |
|
LNK-IMC204GP |
Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE+) + 2-port 1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m |
|
LNK-IMC204GP-20 |
Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE+) + 2-port 1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM |
|
LNK-IMC204GPS-20 |
Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE+) + 2-port 1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM |
|
LNK-IMC204GPF-20 |
Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE+) + 2-port 1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM |
|
LNK-IMC204GP-SFP |
Industrial 4-port 10/100/1000BASE-T (4-port PoE+) + 1-port 1000BASE SFP Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 120W/2.5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
