DIN Rail Wall mount Gigabit Ethernet Switch 10 Port 10/100/1000T
DIN Rail Wall Mount Gigabit Ethernet Switch 10 Port 10/100/1000T
Gigabit Ethernet Switch Mini 10 Port 10/100/1000T Compact Industrial Unmanaged
10 Port Gigabit Ethernet Switch Advantages
► 10-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial Full 10 Port Ethernet Network Switch Overview
LNK-IMC010G Series is a Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
10 Port 1000Mbps Din Rail Ethernet Switch Technical Indexes
|
Standards: |
IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3x Full-Duplex Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
Switch Fabric: |
20Gbps/non-blocking |
|
Switch Throughput (packet per second) |
14.88Mpps@64bytes |
|
Connector: |
10 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Input Power: |

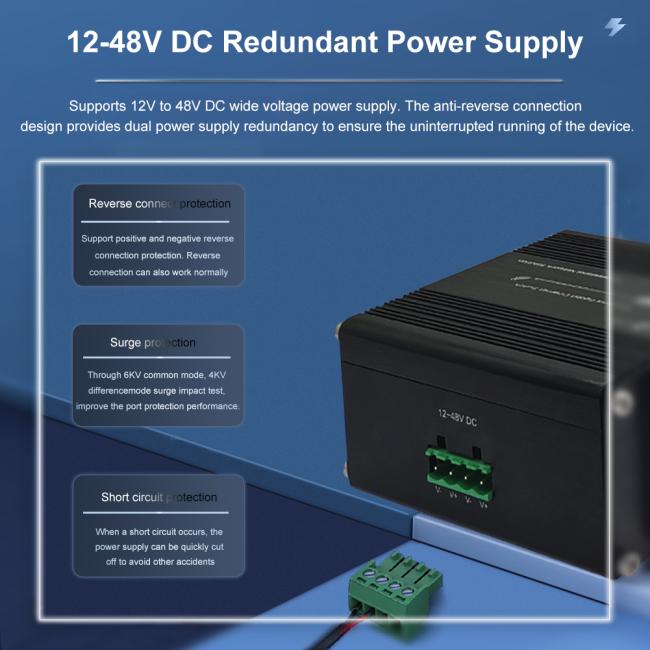

12~48VDC Redundant power with polarity reverses protection function |
|
Power Consumption: |
<10W |
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
Dimensions (WxDxH): |
95 x 88 x 46mm |
|
Weight: |
300g |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
Din Rail Industrial 10 Port Ethernet Switch Ordering Information
|
Model |
Description |
|
LNK-IMC010G |
Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |
