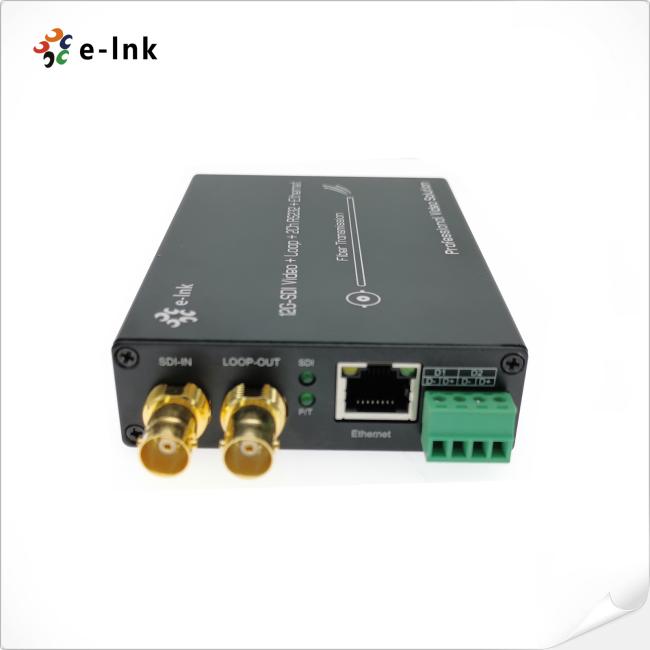

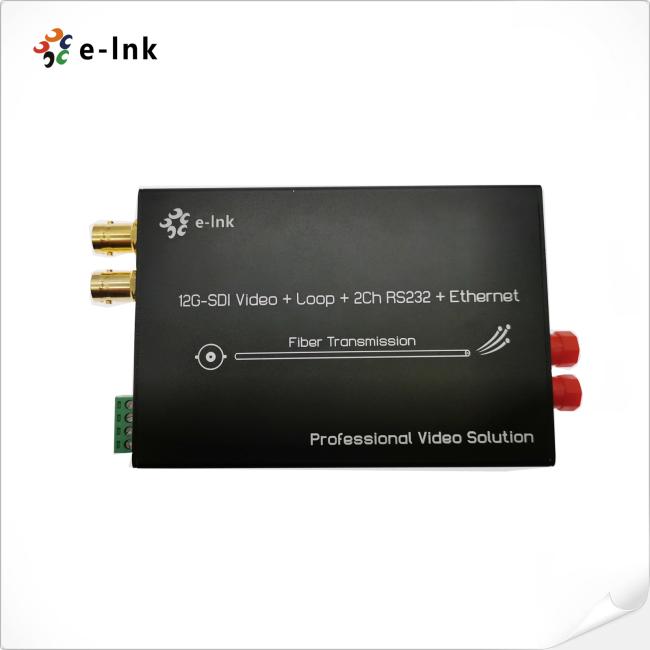

12G-SDI Fiber Converter with 10/100/1000M Gigabit Ethernet and 2Ch Backward RS485
12G-SDI Fiber Converter with 10/100/1000M Gigabit Ethernet and 2Ch Backward RS485
12G-SDI Fiber Over Ethernet Extender Advantage
► Supports one channel of 12G-SDI input and embedded audio synchronous transmission;
► Support reverse RS485 (Tally optional) signal transmission;
► The transmitter supports ring pass output, and the receiver supports dual output;
► Adopting high-quality 12G SDI dedicated BNC connectors;
► Adaptive technology, without setting adjustments, supports plug and play and hot swapping;
► The status indicator LED lights provide real-time monitoring of parameters such as power supply, optical path, and video;
► Aluminum alloy shell anodizing process, suitable for industrial environments
12G SDI over Fiber Transmitter Receiver Technical Indexes
|
Formats |
Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD) |
|
Compatible |
Compatible With DVB-ASI and AES10 (MADI) |
|
Input |
1 x 12G-SDI on BNC |
|
Output |
2 x FC optical fiber |
|
1 x 12G-SDI loop-out on BNC |
|
|
Supported Resolution |
HDTV 4K*2K, 1080P, 1080I, 720P |
|
Resolution range |
3840*2160@60Hz |
|
Input cable specification |
≤70m@12G SDI Belden 1694A |
|
Output cable specification |
≤60m@12G SDI Belden 1694A |
|
Ethernet |
10/100/1000Mbps |
|
Data type |
2Ch Backward RS485 |
|
Optical transmission bandwidth |
270MHz～12GHz |
|
Power |
12 VDC |
|
Power Consumption |
6 W (Max.) |
|
Dimensions (LxWxH) |
117 x 80 x 24 (mm) |
|
Operating Temperature |
-10℃～70℃ |
|
Storage Temperature |
-40℃～85℃ |
12G SDI Video Over Ethernet Fiber Transmitter Receiver Ordering Information
|
Model |
Description |
|
LNK-12GSDI-1V2R1GE
|
12G-SDI to Fiber Converter with Gigabit Ethernet and 2Ch Backward RS485, SMF, FC Fiber Connector 10KM, including Transmitter and Receiver, used by pairs
|
