Industrial 90W PoE Extender 1-Port 802.3bt PoE++ To 4-Port 802.3Af/at Din Rail Mounting
Industrial 90W PoE Extender 1-Port 802.3bt PoE++ To 4-Port 802.3af/At Din Rail Mounting
Outdoor 802.3bt 90W PoE Extender Advantages
► Can be Powered by IEEE 802.3at or High-Power PoE 95W Power Sourcing Equipment
► Can Power IEEE 802.3af PoE, IEEE 802.3at or High-Power PoE 95W Powered Devices
► Extends an additional 100m for PoE network
► Support DIN-Rail & Wall-mount installation
Industrial 802.3bt PoE Extender Technical Indexes
|
Ethernet Port |
|
|
PoE Input Port |
10/100/1000Base-TX RJ45, IEEE 802.3bt PoE Input Input Power 50~57V DC, Max 95W |
|
PoE Output Port |
1*10/100/1000Base-TX RJ45, IEEE 802.3bt/at PoE Output Output Power: Max 75W in total, 75W@ 101m, 65W@ 200m |
|
Cascade connection |
Support 3 grade |
|
Power over Ethernet |
|
|
PoE Standard |
IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus |
|
PoE Power Supply Type |
Mid-span and End-span |
|
PoE Pin Assignment |
1/2(+), 3/6(-),4/5(+), 7/8(-) |
|
Environment |
|
|

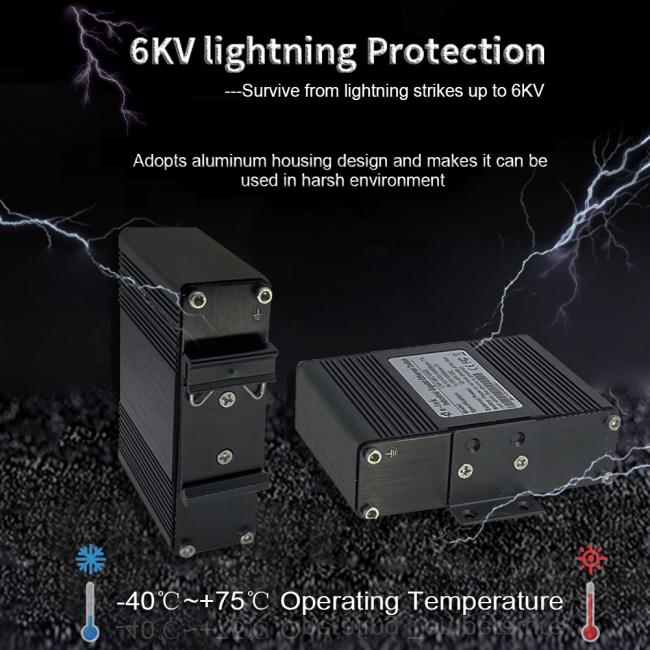

Surge Immunity |
6KV, Standard: IEC6000-4-5 |
|
ESD Protection |
6KV 1a Contact Discharge Level 3, 8KV 1b Air Discharge Level 3, Standard: IEC61000-4-2 |
|
Protection Level |
IP 40 |
|
Operating Temperature |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Operating Humidity |
0~95% (non-condensing) |
|
Certifications |
|
|
Certifications |
CE, FCC, RoHS |
4 Ports 10/100/1000Mbps Gigabit PoE Extender Overview
LNK-IPE104-90 is an industrial single port 802.3bt PoE++to 4-port 802.3af/at Gigabit PoE extender designed for point-to-point PoE applications. LNK-IPE104-90 can obtain a maximum of 95 watts of PoE power from the 802.3bt PoE++input port and provide a maximum PoE power budget of 75 watts for four PoE output ports, expanding the coverage of Gigabit Ethernet data and IEEE 802.3at Ethernet power to the standard 100 meter (328 feet) Cat. 5/5e/6 UTP cables up to 200 meters can simultaneously power up to 4 power receiving devices (PDs).
Din Rail 90W PoE Extender Ordering Information
|
Model |
Description |
|
LNK-IPE104-90 |
Industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender, support Din Rail & Wall-mount Installtions |
