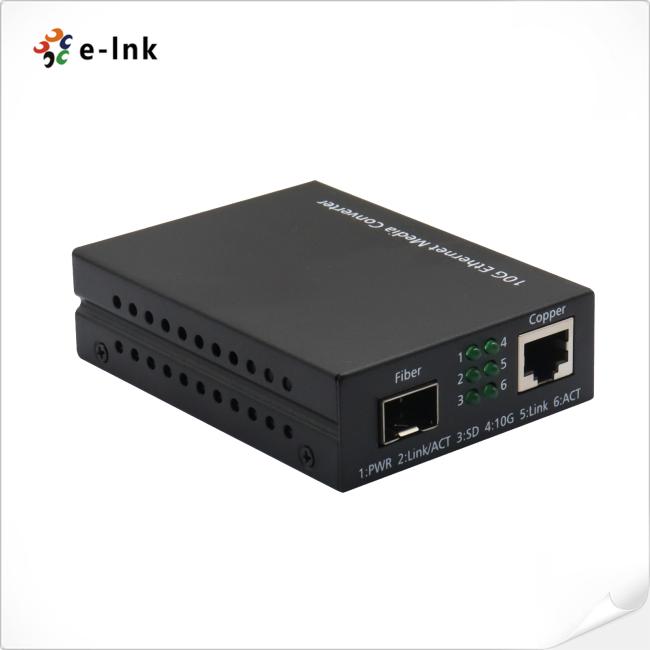

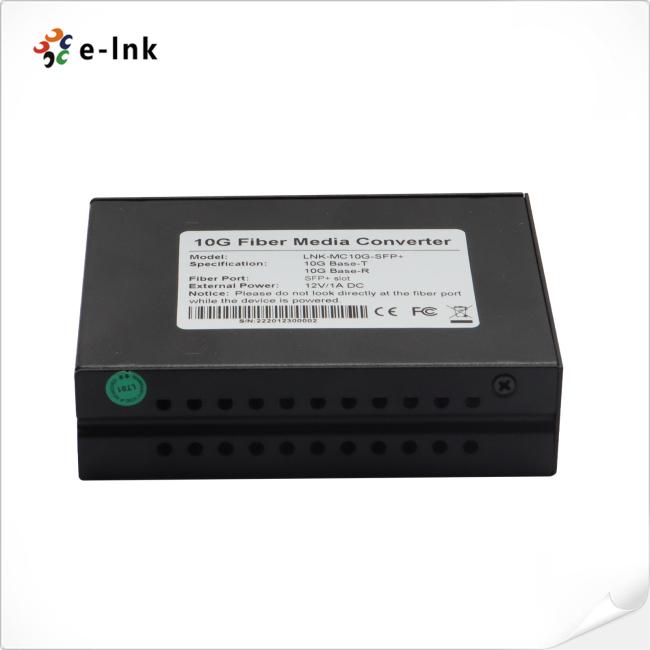

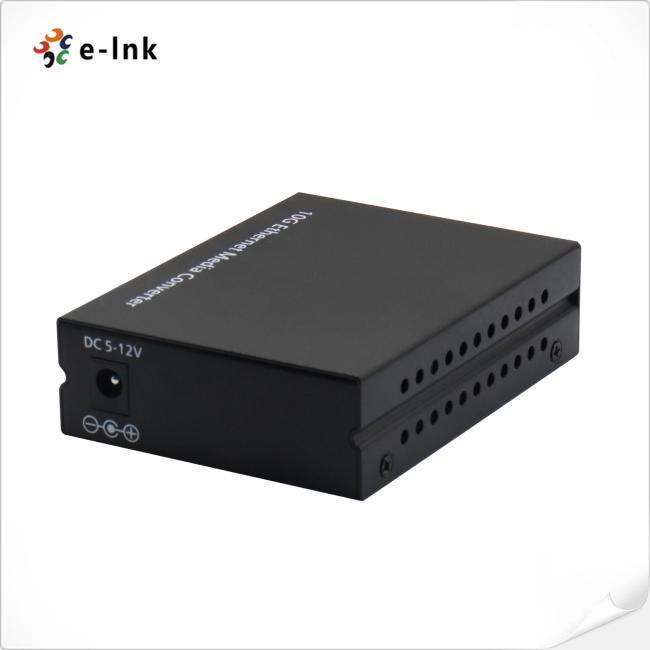

Commercial 10G Fiber Media Converter 10G/5G/2.5G/1G/100M Copper To 10GBASE-X SFP+
Commercial 10G Fiber Media Converter 10G/5G/2.5G/1G/100M Copper To 10GBASE-X SFP+
10G Fiber Media Switch Advantages
► 100M/1G/2.5G/5G/10GBase-T to 10GBase-X SFP+ Fiber Media Converter
► Support 1U Rack (12 channel) and Standalone use
► Support ITUT prescribed DWDM/CWDM wavelength
► Support Loopback test function
► Prevent packet loss with back pressure and IEEE 802.3x pause frame flow control
► DIP Switch to set different configurations
► Support Link Fault Pass Through (LFP) and Automatic Laser Shutdown (ALS) function
Copper to Fiber Media Converter Overview
Basically, media converters are simple devices that are used to connect two devices or LANs that are not fully compatible, due to different speeds, types of operation, modes or types of media (twisted pair, fiber, coaxial cable). The most common use is the integration of fiber optic segments in copper networks This gives you the possibility to extend your Ethernet network beyond the limit of 100 meters imposed by the copper cable. Media converters can be used anywhere in the network to integrate new technologies into existing equipment, to support new applications, technologies, and future growth. Instead of making expensive updates, media converters can extend the productive life of existing wiring.
Commercial 10G Fiber Media Converter Technical Indexes
Copper Port | 1000Base-T: Cat5 UTP/STP. MAX 100m; |
2.5GBase-T: Cat5e UTP/STP. MAX 50m; | |
5GBase-T: Cat5e UTP/STP. MAX 50m; | |
10G Base-T: Cat6a UTP/STP. MAX 50m; | |
1000Base-T: Cat5 UTP/STP. MAX 100m; | |
SFP+ Port | 10GBASE-SR/LR/ER/ZR SFP+ interface: |
50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m; | |
9/125μm single-mode fiber optic cable, up to 10/40/80km | |
Exchange Property | Delay time: < 7ps |
DIP Switches | LFP function: Disable/Enable |
Dimensions (LxWxH) | 120mm×90mm×35mm |
Installation Mode | Desk-top or wall-mountable |
Weight | 180g |
Operating Temperature | 0°C~50°C |
Operating Humidity | 10%~90% non-condensing |
Storage Temperature | -10°C~70°C |
MTBF | 50,000 hours |
Defects Liability Period | 1 year warranty, lifetime technical support |
10G Fiber Optical Media Converter Ordering Information
Model | Description |
LNK-MN-10GMC | Mini-type 10G Ethernet RJ45 to SFP+ Fiber Media Converter |
Mounting Options | Desk-top or wall-mountable |
