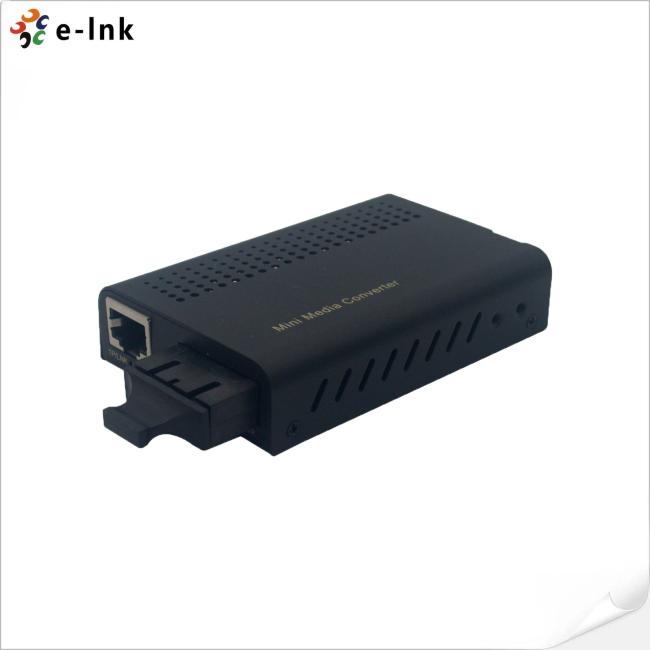

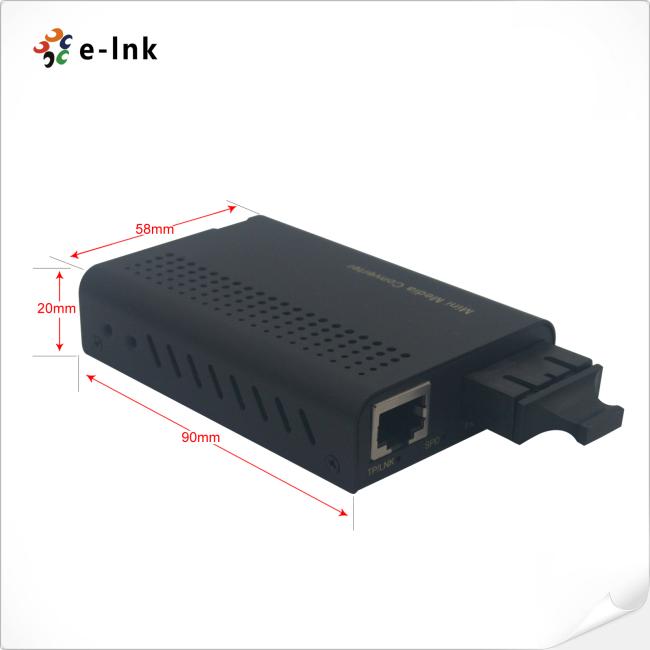

Commercial Fiber Gigabit Media Converter 10/100/1000Base-TX To 1000Base-FX SC
Commercial Fiber Gigabit Media Converter 10/100/1000Base-TX to 1000Base-FX SC
Fiber Ethernet Media Switch Advantages
► 10/100/1000Base-TX UTP to 1000Base-FX fiber media converter
► Support IEEE802.3U, IEEE802.3z, 1000Base-TX/FX standards
► SC Fiber Port
► DIP switch to set different configuration
► LFP (Link Fault Pass-through) support
► Support jumbo frame
Fiber Gigabit Media Converter Overview
The Mini 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter is fully compliant with IEEE802.3U, IEEE802.3z 1000Base-TX/FX protocols. The converter can support auto MDI-MDIX function, flow control for full and half duplex operation, etc.
A DIP switch is placed at the bottom of the case. Depend on different configurations; the user can set the different operating mode (Force FX to 100M, pass through mode, etc).
10/100/1000Mbps Fiber Media Converter Technical Indexes
|
Parameter |
Specifications |
|
Standard |
IEEE802.3, IEEE802.3u,IEEE802.3Z,IEEE802.3x |
|
1000Base-FX or 100Base-FX |
|
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
Multi-mode: |
|
single mode: |
|
|
Cat-5 twisted pairs: 100m |
|
|
Conversion means |
Store and Forward mode or Cut-Through mode |
|
Flow control |
Full duplex: flow control; |
|
Half duplex: back pressure |
|
|
Input voltage |
DC 5V~12V |
|
Power consume |
<3W |
|
Operating temperature |
0~50ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
Enterprise Fiber Optical Media Converter Ordering Information
|
Model |
Description |
|
LNK-MN-1000MC-SC |
Mini 10/100/1000Base-TX to 1000Base-SX Media Converter, Multi mode, 850nm, SC, 550m, standalone |
|
LNK-MN-1000MC-SC-20 |
Mini 10/100/1000Base-TX to 1000Base-FX Media Converter, Single Mode, 1310nm, SC, 20km, standalone |
