10/100/1000mbps Ieee 802.3af/At 30w Poe Injector For High Speed Networking
Product Description:
The LNK-POE300AT Power over Ethernet (PoE) adapter is specially designed to meet the needs of surveillance cameras and wireless LAN devices such as access points, bridges and routers.
It is unique in that its technology enables power to travel on the Ethernet network cable, eliminating the need for direct connection of a power supply to the wireless LAN device. This single cable aptly combines Power and Data, thus08032020 foregoing the need for extra power lines. As a result, both installation costs and labor costs are reduced significantly.
Features:
This PoE Power delivers up to 15.4 watts for devices compliant with IEEE802.3af and up to 30 watts for IEEE802.3at compatible. It supports 10/100M or 10/100/1000M in the Local Area Network environment and is “plug-and-play” easy, requiring no configuration.
A built-in protection circuitry that safeguards against short circuit, overload and over-voltage provides the safest and most reliable power for WLAN access points.
The PoE Power auto detect non-standard ethernet terminals and issues appropriate protection to ensure a safe and secure network.
It also reduces installation costs, making it the optimal solution for many applications.
Technical Parameters:
|
Parameter |
Specifications |
|
Features |
• Conforms to IEEE802.3af standard RJ-45 • Conforms to IEEE802.3af standard RJ-45 |
|
• Data Input Interface RJ-45 10/100Base-TX/ • Data Input Interface RJ-45 10/100/1000Base-TX |
|
|
• Output Port Power Cable Included |
|
|
Data Rate |
10/100Mbps 10/100/1000Mbps |
|
Input Power |
90-240V AC ,50-60Hz |
|
Output Power |
15.4W Max IEEE802.3af 30W Max IEEE802.3at |
|
Wiring |
• Data provide over pairs 1/2(+) and 3/6(-) |
|
• Power over spare pairs 4/5(+) and 7/8(-) |
|
|
LED Display |
YES |
|
Operating Temperature |
0 to +40°C, |
|
Humidity |
Max. 95% RH(non-condensing) |
|
Dimension |
61×40×12(H×D×W) |
|
Weight |
200g |

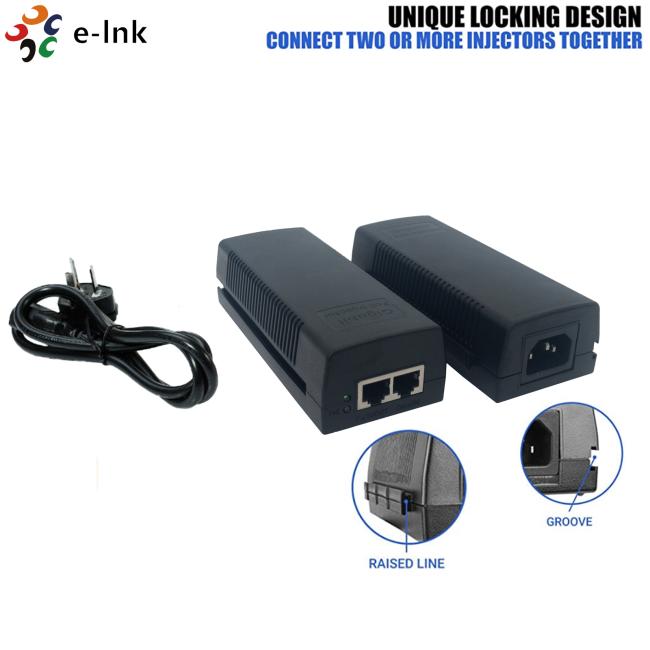

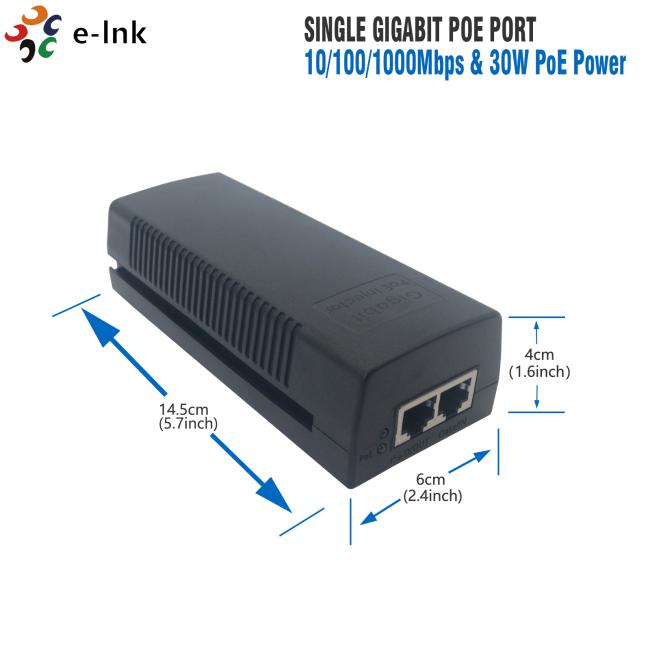

Appearances:
Support and Services:
At
- 24/7 customer service support
- Expert advice from our technical staff
- Troubleshooting assistance for any issues
- Software and firmware updates
- Replacement parts
If you have any questions or need technical support for your PoE Injector Adapter, please contact our customer service team at
Packing and Shipping:
The PoE Injector Adapter is packaged in a cardboard box with foam inserts for protection. The box measures 8" by 5" by 3" and weighs 0.7 lbs. It is shipped in a double-walled corrugated cardboard box with cushioning material for additional protection.
The package is designed to withstand the rigors of shipping and protect the product from damage. It is shipped via USPS, FedEx, or UPS with tracking and delivery confirmation.
Ordering Information:
| Model | Decription |
| LNK-POE200 | PoE Adapter, 10/100Mbps, IEEE 802.3af 15.4W |
| LNK-POE200AT | PoE Adapter, 10/100Mbps, IEEE 802.3at 30W |
| LNK-POE300 | PoE Adapter, 10/100/1000Mbps, IEEE 802.3af 15.4W |
| LNK-POE300AT | PoE Adapter, 10/100/1000Mbps, IEEE 802.3at 30W |
