1200m Mini Powerline Ethernet Adapter(supplies the max transmission speed at 1200Mbps)
1200M Mini Powerline Ethernet Adapter
1200M Mini Powerline Ethernet Adapter Advantages
- Adopt HomePlug AV2, transmission rate(PHY) up to 1200Mbps.
- Take MIMO technology, the bandwidth is much wider and the data transmission much more stable.
- No wiring and setting.
- Adopt QOS technology, guarantee the transmission stability of streaming media.
- Hardware or software encryption(optional)
Technical Indexes
| Interface | 1* 10/100/1000Mbps self-adaption RJ-45 port. |
| LED display lights |
Ethernet light (ETH) PLC communication status (ACT) Power light (PWR) |
| Ethernet |
IEEE802.3 10/100/1000MbpsBaseT auto-sense Auto rate and duplex negotiation MDI/MDX support |
| Modulations | OFDM,FEC,Flexible frequency configuration |
| Data Rate | Up to 1.2Gbps |
| Management |
HTTP Web-based;firmware upgrade via TFTP TR-069 Supported(Optional) |
| Security | AES 128 bits encryption ensures total data security |
| Networking Protocols |
802.1D Ethernet Bridge 802.1Q VLAN Quality of Service(QoS) IGMPV1/V2/V3(IPV4)Snooping & MLD(IPv6)Snooping |
| Power |
110-240VAC 50Hz/60Hz Auto power saving mode max 0.5W(in standby mode) |
| Environment Connection |
Operating temperature:0-40 degrees Celsius Relative humidity:8-95%(non-condensing) |
| Certifications | FCC,CE calssB, WEEE,RoHS, ITU-T G.hn Standard |
| Size | 145*70*43(mm) |
| Environment |
Operating Temperature: 0℃~40℃ Storage Temperature: -10℃~70℃ Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing |

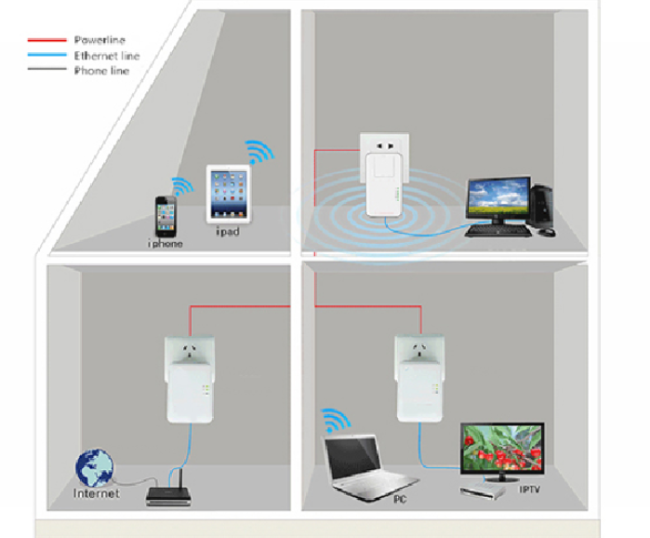

Application
Ordering Information
| Item | Description |
| LNK-P1200 | 1200Mbit HomePlug AV Powerline Mini Adapter |
